PLANET ECLIPSE GEO CS1 - Technical Information: Solenoid Assembly

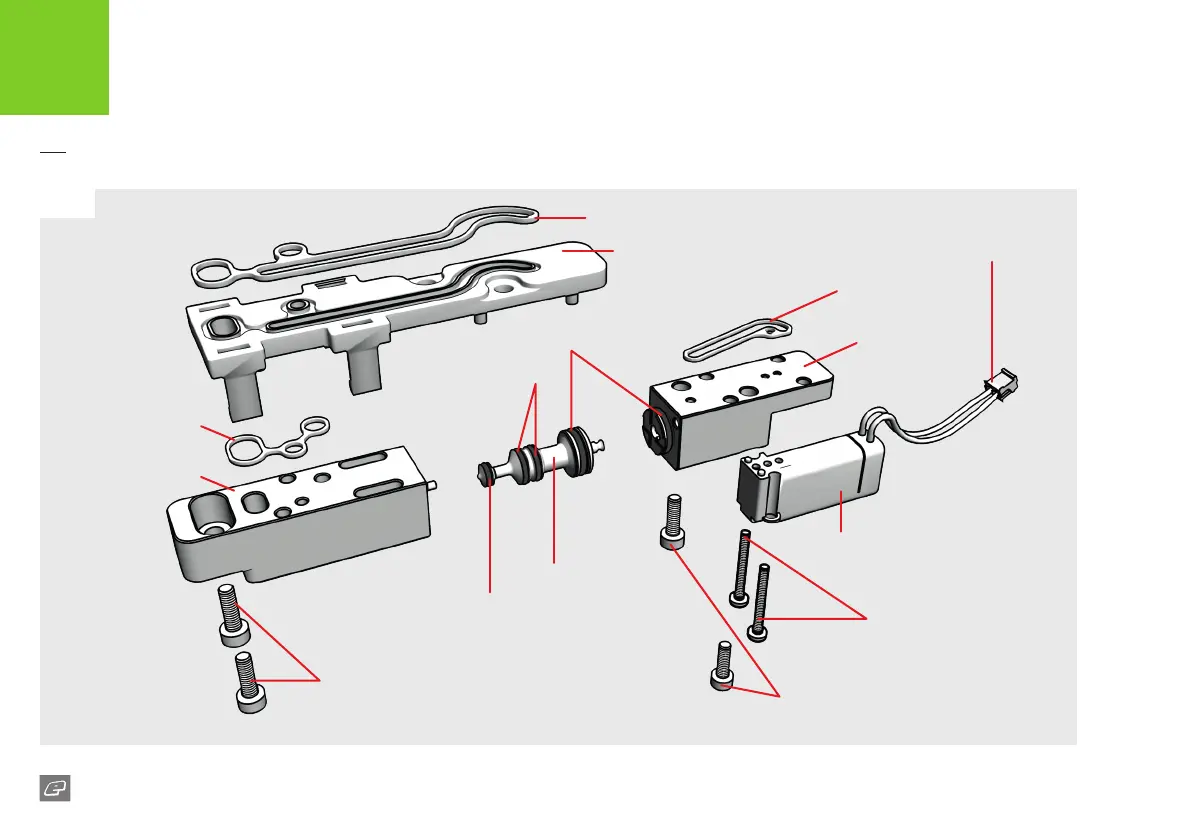

FIG-1
48
GEO:CS1
TECHNICAL INFORMATION
SOLENOID ASSEMBLY
Solenoid spool
#4 Solenoid
spool seal
Solenoid plate
Solenoid plate
gasket
Solenoid pilot section
Solenoid plug
M2 x 12
cross pan-head screw
#6 Solenoid
spool seal
Solenoid manifold gasket
Solenoid manifold
M2.5 x 8 socket cap-head
retaining screws
M2.5 x 8 socket cap-head
retaining screws
6 x 1 o-ring
Solenoid body
gasket
Solenoid body
