Planet VC-201A - Front Panel Interface

15

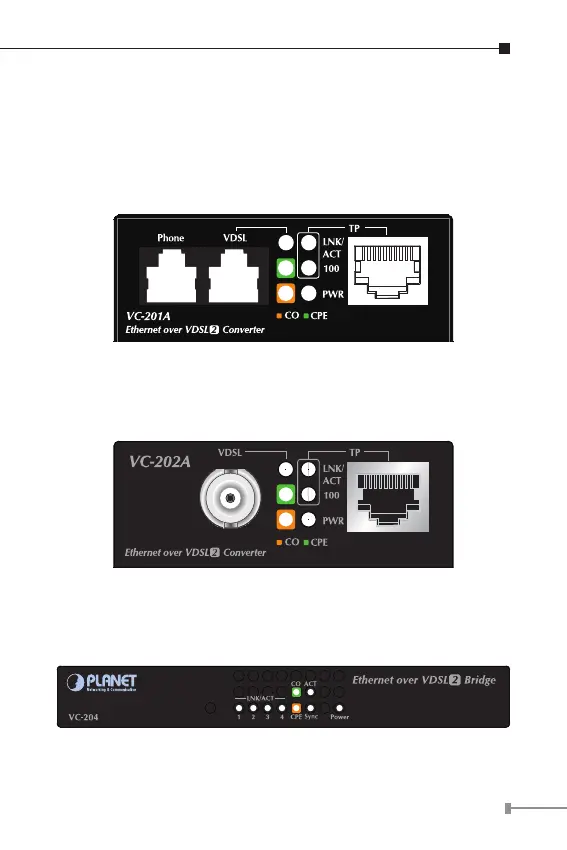

2.1 Front Panel
The units’ front panel provides a simple interface monitoring the
Ethernet over VDSL2 Converter.
VC-201A Front Panel
Figure 2-1: VC-201A front panel
VC-202A Front Panel
Figure 2-2: VC-202A front panel
VC-204 Front Panel
Figure 2-3: VC-204 front panel
