Planet VC-201A User Manual

19

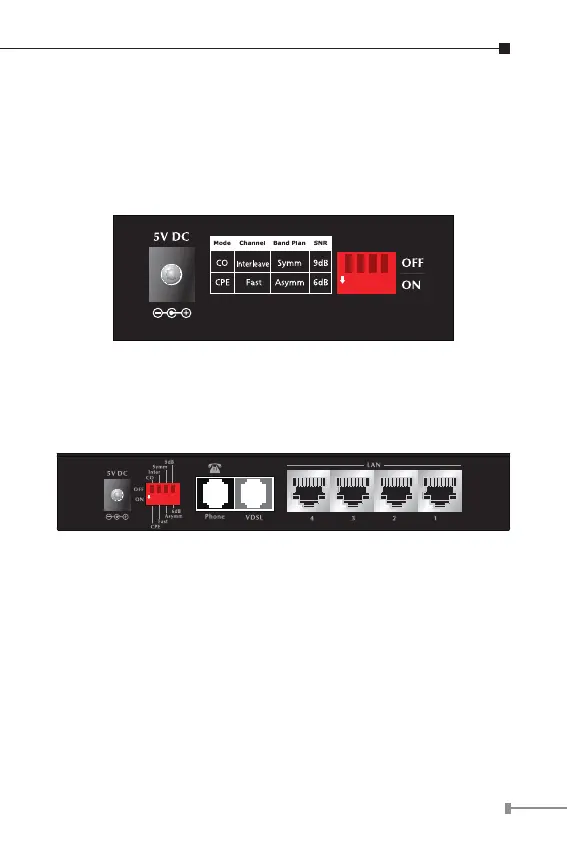

2.2 The Rear Panel
The rear panel of the Ethernet over VDSL2 Converter is shown
as below.
VC-201A / VC-202A Rear Panel
1 2 3 4
ON
Figure 2-4: VC-201A / VC-202A rear panel
VC-204 Rear Panel
1 2 3 4
ON
Figure 2-5: VC-204 rear panel
2.2.1 MODE DIP Switch
The Ethernet over VDSL2 Converter provides 4 selective
transmission modes. By switching the transmission modes,
you can obtain a best transmission mode to suit with phone
line quality or distance of connectivity. The following is the
summary table of transmission setting, bandwidth and distance
extensibility tested for AWG 24 (0.5mm) twisted-pair without
noise and cross talk.
n
n

Planet VC-201A Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1600 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	69 mm
Width	97 mm
Height	26 mm
Weight	400 g
