Planet VC-201A User Manual

24
Coaxial Cable
Up to 3.0km
Router
Switch
VDSL2 CPE Converter
VDSL2 CO Converter
Internet
VDSL2
100Base-TX UTP
VDSL2 Coaxial Cable
VDSL2

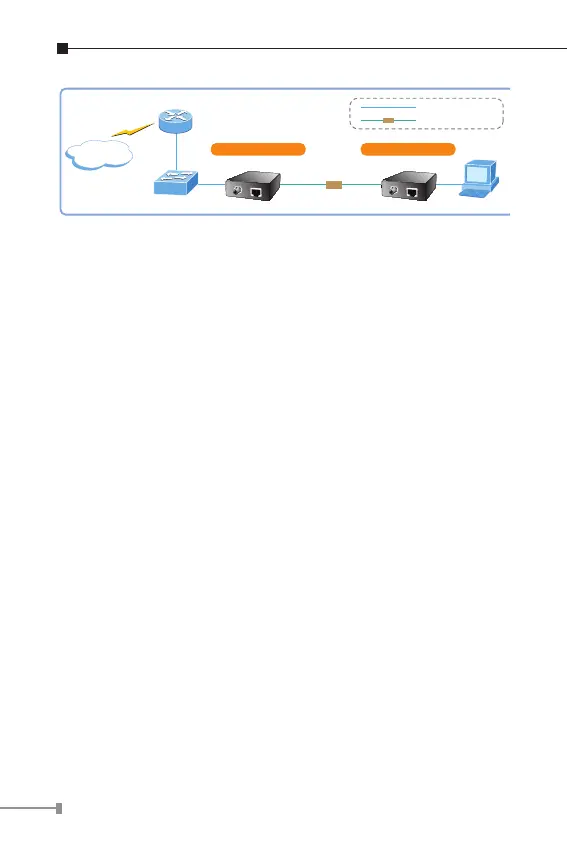

Figure 3-3: VC-202A LAN to LAN connection
3.1.2 VC-201A / VC-204 Connect to Multi-Port Master
To built up a local Internet in apartment, hotel, campus and
hospitality environment.
The Multi-port Master (for example, VC-820M VDSL2 Switch)
need to be placed in the wiring center (MDF room) and connect
to the telephone line system, on the other hand, need to install
a Slave (VC-201A / VC-204 CPE) converter on the individual
client side and connect to the Multi-port Master through the
telephone lines.
When deciding where to put the converter then you must
ensure:
It is accessible and cables can be connected easily.
Cabling is away from sources of electrical noise such as
radios, transmitters and power lines and uorescent lighting
xtures.
Water or moisture can not enter the Converter.
Air ow around the unit and through the vents in the side
of the case is not restricted (company recommend that you
provide a minimum of 25mm inch clearance)
To prolong the operational life of your units:
Do not place objects on top of any unit or stack
l
l
l
l
l

Planet VC-201A Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1600 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	69 mm
Width	97 mm
Height	26 mm
Weight	400 g
