Planet VC-201A User Manual

28
3.3.2 Connecting Multiple PCs to an Ethernet LAN
Refer to the following procedures to setup the VC-202A to an
Ethernet LAN.
1. Set the VC-202A to be CO or CPE mode from the DIP switch
at the rear panel.
2. Power on the VC-202A by connecting its power source.
3. Power LED will illuminate.
4. Connect coaxial cable from another VDSL device to VDSL BNC
port of the VC-202A.
5. LNK LED will illuminate.
6. Connect Ethernet port to Ethernet Switch (or Broadband
Router) via regular Cat. 5, 5e or 6 cables.
VC-202A
VDSL
BNC
Fast Ethernet
Switch
RG58 Jack
RJ-45
Cat.5 Twisted Pair Cable
RG58 / RG6
TP
b/g
b/g
VDSL2
100Base-TX UTP
VDSL2 Coaxial Cable
VDSL2

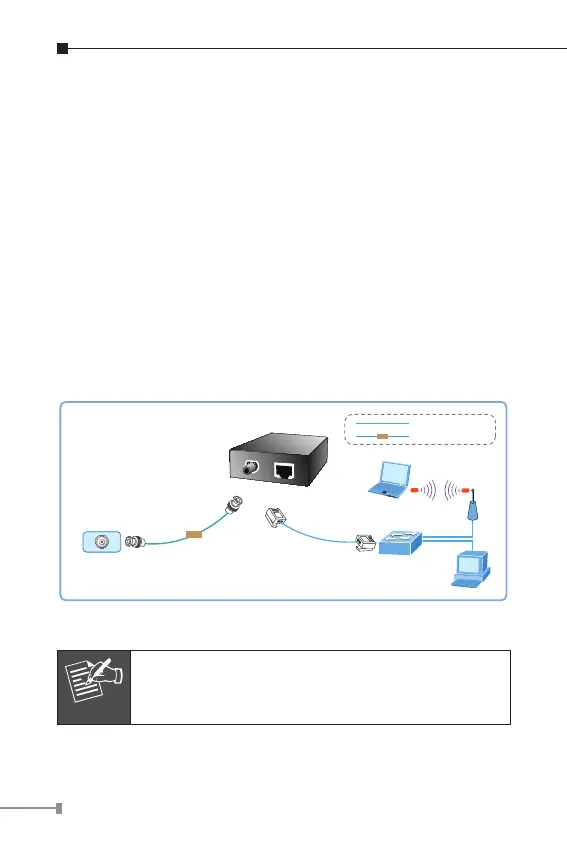

Figure 3-7: Connecting Multiple PCs to an Ethernet LAN
Note
Please refer to your Ethernet device User’s Manual
for the device’s set up information.

Planet VC-201A Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1600 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	69 mm
Width	97 mm
Height	26 mm
Weight	400 g
