Planet vc-231 User Manual

8

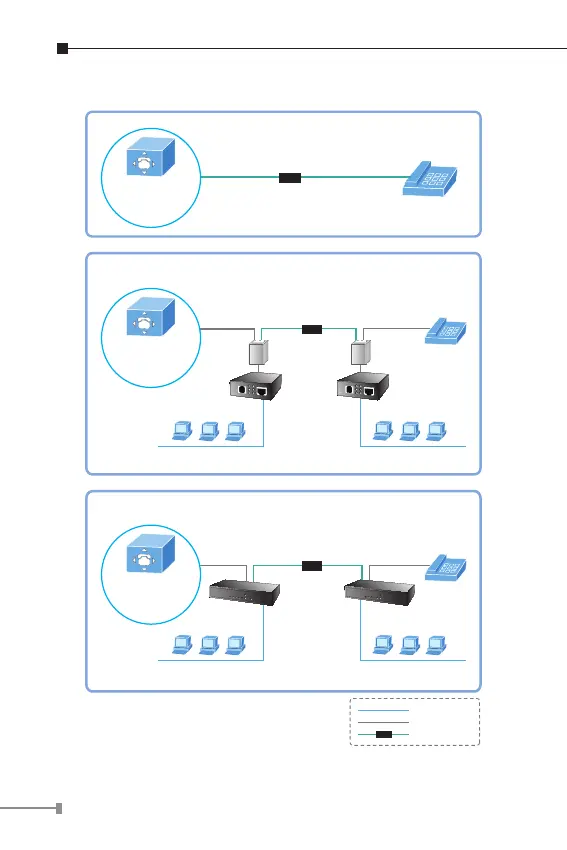

LAN to LAN Connection
Telephone wire
100Base-TX UTP
VDSL2
VDSL2
Ethernet Telephone Network
Main office/PBX,
Telco CO,
wire closet
VDSL2
Telephone wire
Up to 1.4km
VDSL2
Telephone wire
Ethernet over VDSL2 and Telephone Network
Main office/PBX,
Telco CO,
wire closet
LAN1
LAN2
VC-234/CO VC-234/CPE
Up to 1.4km
VDSL2
Telephone wire
Ethernet over VDSL2 and Telephone Network
Main office/PBX,
Telco CO,
wire closet
LAN1
LAN2
VC-231/CO VC-231/CPE
Splitter Splitter

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
