Planet XT-705A User Manual

11
2. Hardware Description

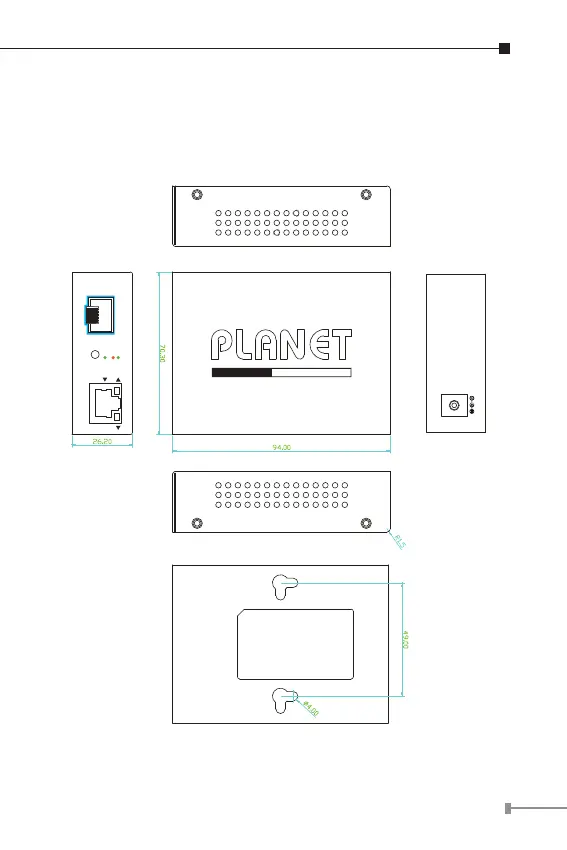

2.1 Physical Dimensions
XT-705A dimensions (W x D x H): 94 x 70 x 26mm
5V DC
10 Gigabit Ethernet
10GBASE-T to 10GBASE-X
10GBASE-T
LNK SPD
10G SFP+
PWR
10 Gigabit Ethernet Converter
XT-705A
2.5G 10G/1G 5G/100
Dimensions ( unit = mm )

Planet XT-705A Specifications

General

Jumbo frames	16000
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat5, Cat5e, Cat6, Cat6a, Cat7
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate	10000 Mbit/s
Fiber ethernet cabling technology	10GBASE-X
Fiber optic connector	SFP+
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Internal	No
Certification	FCC Part 15 Class A, CE
LED indicators	Link, Power
Housing material	Metal
Input current	2 A
Input voltage	5 V
Power consumption (typical)	26 W
Wavelength	- nm
Fiber mode structure	Multi-mode, Single-mode
Maximum transfer distance	60000 m
Fiber cable diameters supported (core/cladding)	9/125, 50/125, 62.5/125 µm
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	94 mm
Height	26 mm
Weight	180 g
