2.2 Converter Front Panel and LED Indicators

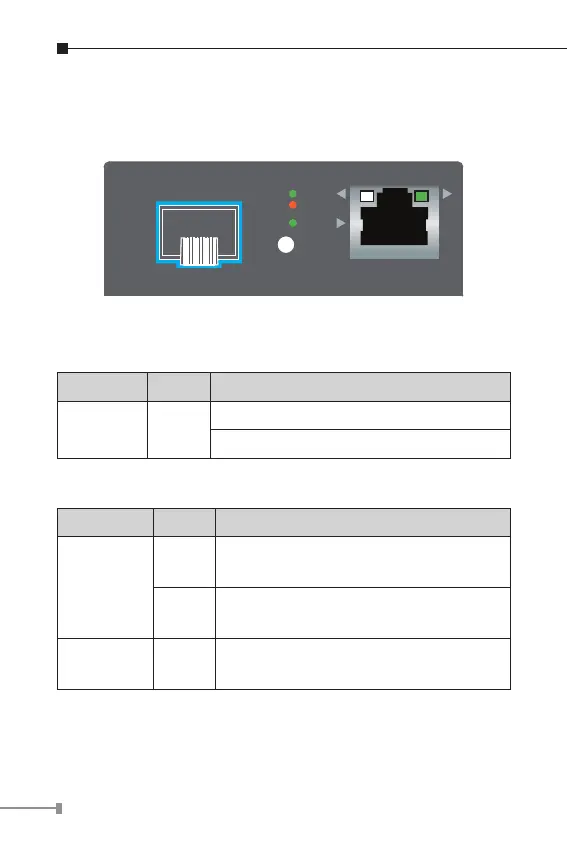

Figure 2-2 shows the front panels of the Media Converter.
10GBASE-T
LNK SPD
10G SFP+
PWR
10 Gigabit Ethernet Converter
XT-705A
2.5G
10G/1G
5G/100
Figure 2-2: XT-705A Front Panel
System
LED Color Function
PWR Green
Lit: Power is active
Off: Power is inactive
Per 10G/5G/2.5G/1G/100BASE-T Port
LED Color Function
10/2.5/1G
Green
Lit: To indicate that the port is
operating at 2.5Gbps.
Orange
Lit: To indicate that the port is
operating at 10/1Gbps.
5G/100M Green
Off: To indicate that the port is
operating at 5Gbps/100Mbps.
