Planet XT-705A User Manual

13
2.3 Rear Panel
The rear panel of the XT-705A consists of one DC jack, which
accepts input power with 5V DC, 2A.
5V DC

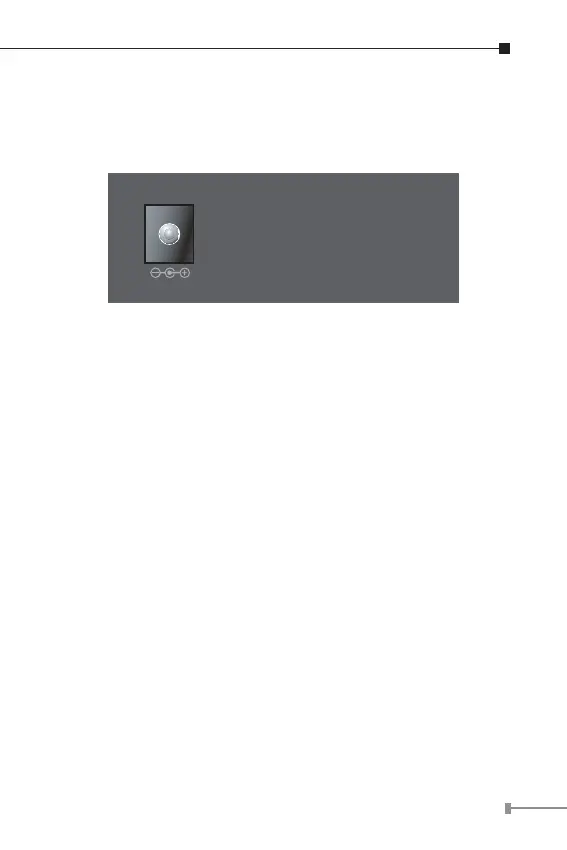

Figure 2-3: One DC jack for DC power input
2.4 Power Information:
The central pole of the Media Converter’s power jacks measures
2.5mm wide that require +5VDC power input. It conforms to
the bundled AC-DC adapter and PLANET’s media chassis. Should
you have the issue of power connection, please contact your
local sales representative.
Please keep the AC-DC adapter as a spare part when the
XT-705A is installed in a media chassis.

Planet XT-705A Specifications

General

Jumbo frames	16000
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat5, Cat5e, Cat6, Cat6a, Cat7
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate	10000 Mbit/s
Fiber ethernet cabling technology	10GBASE-X
Fiber optic connector	SFP+
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Internal	No
Certification	FCC Part 15 Class A, CE
LED indicators	Link, Power
Housing material	Metal
Input current	2 A
Input voltage	5 V
Power consumption (typical)	26 W
Wavelength	- nm
Fiber mode structure	Multi-mode, Single-mode
Maximum transfer distance	60000 m
Fiber cable diameters supported (core/cladding)	9/125, 50/125, 62.5/125 µm
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	94 mm
Height	26 mm
Weight	180 g
