Planmeca ProMax X-ray User Manual

ProMax X-ray unit with Dimax3 99
TOMOGRAPHIC EXPOSURE
User’s Manual
13.3 Taking an exposure

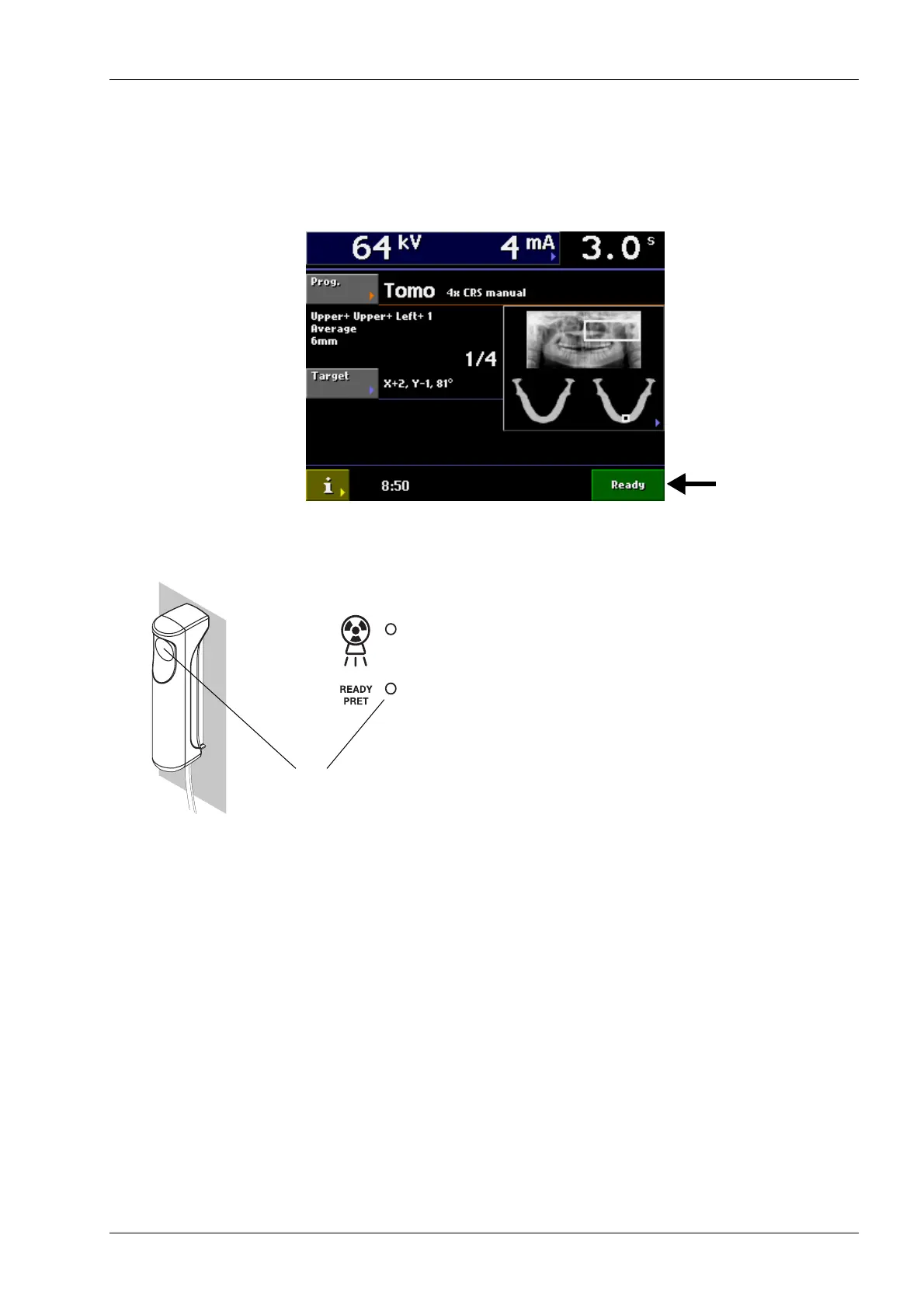

When you are ready to take an exposure touch the Ready
field on the main display. The unit will move to the ready
position for the selected exposure program.
A green indicator light will come on on the exposure
button and on the control panel. Additionally, the word
READY will be shown on the control panel display. The
Dimaxis program will show the Waiting for Ready
message on the computer screen.
The green indicator lights and the word READY will flash
while the unit moves to the ready position. They will stop
flashing when the unit has reached the ready position for
the selected exposure program. The Dimaxis program will
now show the Waiting for Exposure message on the
computer screen.
Exp_sw_wall6.eps
Green ready
indicator light
