ProMax X-ray unit with Dimax3 85
TEMPOROMANDIBULAR JOINT (TMJ) EXPOSURE
User’s Manual
Press and hold down the exposure button for the duration
of the exposure. The C-arm will move through three
exposure cycles. The radiation warning lights on the
exposure switch and on the control panel will come on
and you will hear the radiation warning tone.
When the C-arm has completed the third exposure cycle
the temple supports will automatically open. You can now
guide the patient from the unit.
NOTE Maintain audio and visual contact with the patient
and unit during exposure. If the C-arm stops
moving during exposure, release the exposure
button immediately.
You can drive the C-arm to the entry position by touching
the Go Entry 1 or Go Entry 2 field in the display.
NOTE If a large number of exposures is taken in rapid
succession the X-ray tube may overheat and a
cooling time will flash in the display (e.g. 00:42).
The cooling time indicates the delay before the
next exposure can be taken.
When you have taken the exposure the image will be
shown on the computer screen. Note that you must
accept the image by clicking the “OK” button - only
accepted images will be stored in the database. Refer
to the Dimaxis User’s Manual for further information.

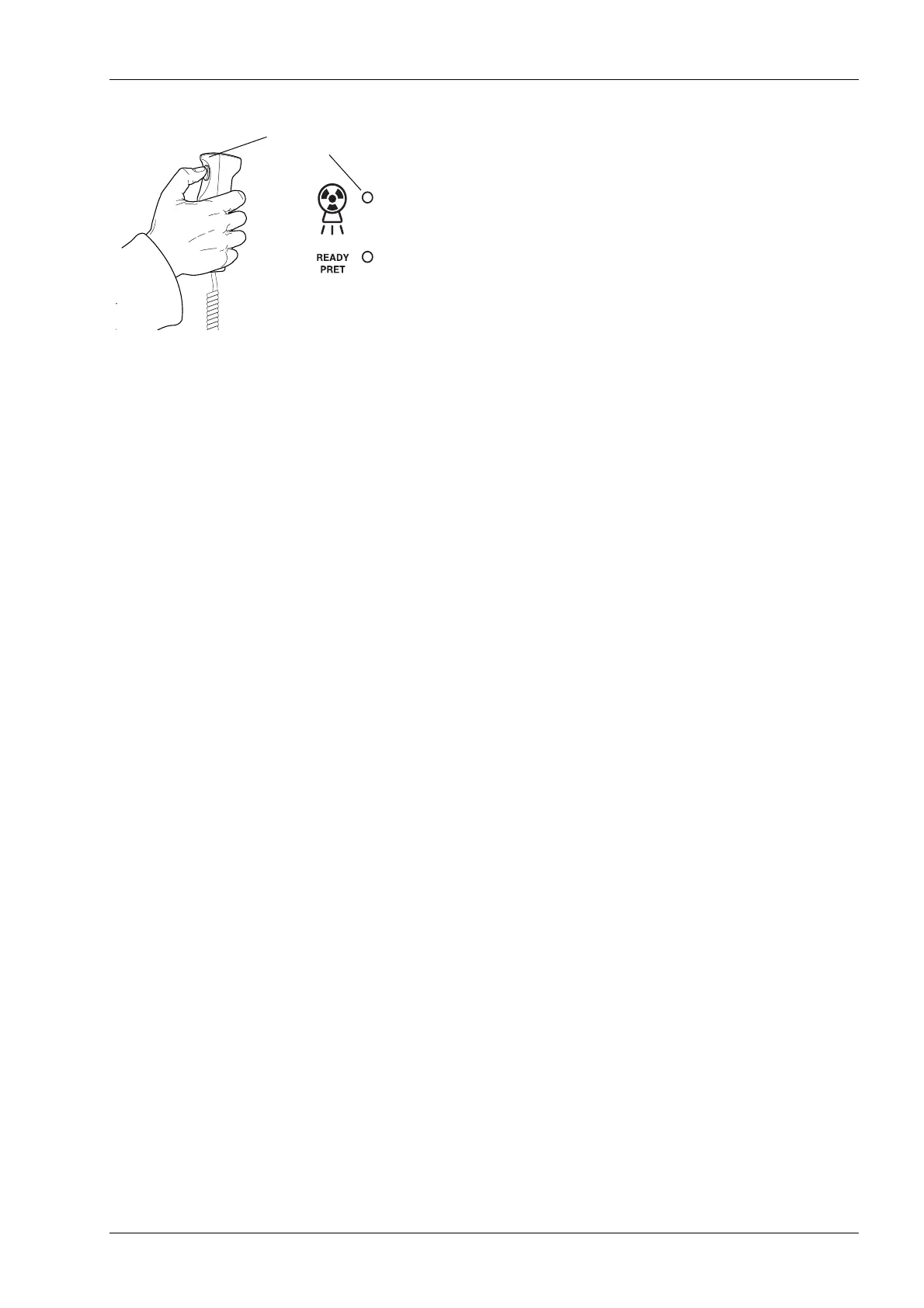

Amber exposure
indicator light
