Plexxi Switch 3eq - Power (P-1 and P-2) and Status (STAT) LEDs; LED States and Descriptions

! Plexxi Switch 3eq Installation Guide (Switch-Control 3.0.0-3.2.x)! 35!
Power!(P-1!and!P-2)!and!Status!(STAT)!LEDs!

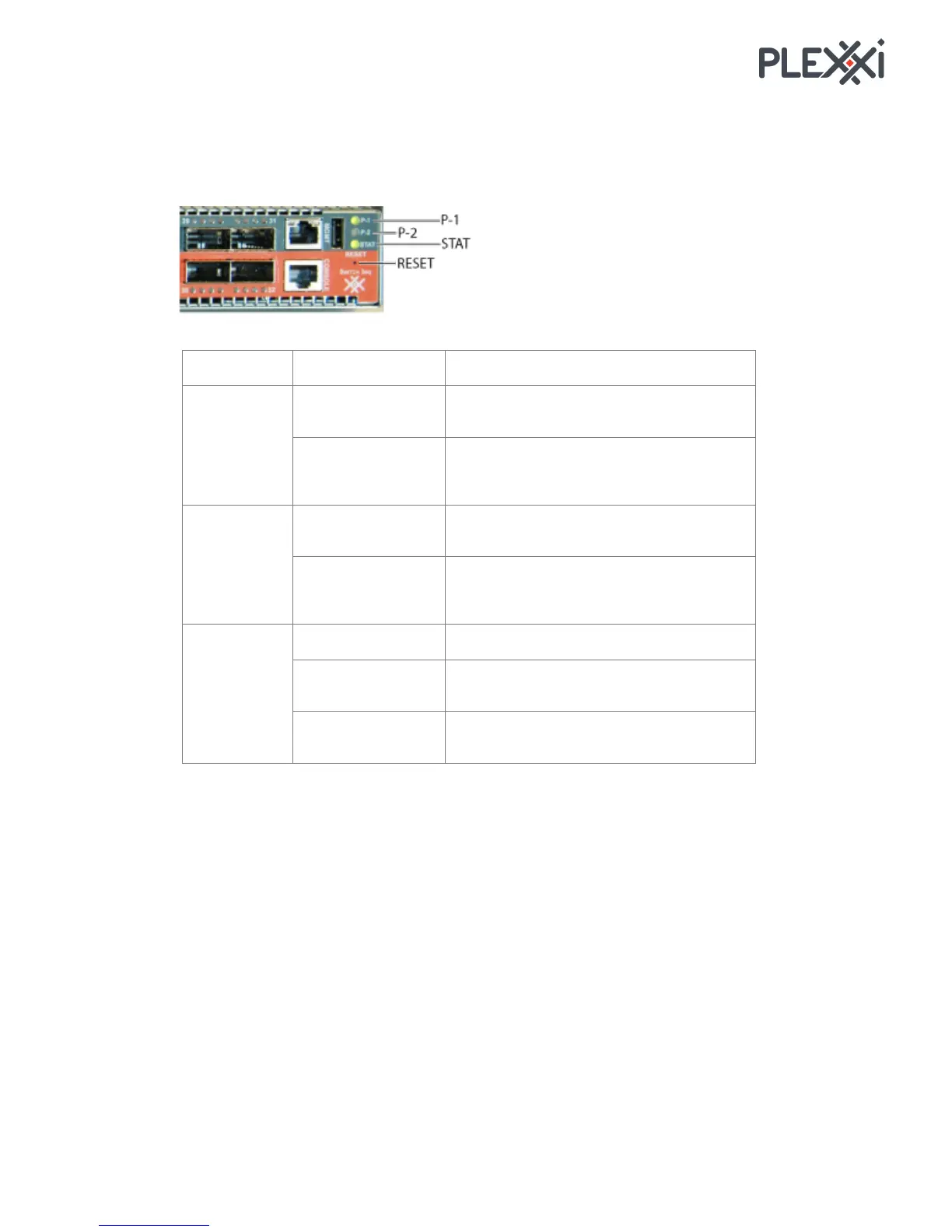

The P-1, P-2 and STAT LEDs are shown in the following figure and described in the table.
Additionally, as illustrated, the I/O panel has a recessed RESET button for manual switch reset.
LED
State
State
P-1
Green
Power supply 1 (power supply labeled
PWR1) is plugged in and site power is on.
Off
Power supply PWR1 is not installed, the
power cord is not connected, or the site
power is off.
P-2
Green
Power supply 1 (power supply labeled
PWR1) is plugged in and site power is on.
Off
Power supply PWR1 is not installed, the
power cord is not connected, or the site
power is off.
STAT
Fast Flash
Started and is initializing.
Slow Flash
Initialized but has not yet connected to
Plexxi Control.
Solid Green
Connected to Plexxi Control and operating
properly.
!
