! Plexxi Switch 3eq Installation Guide (Switch-Control 3.0.0-3.2.x)! 5!
Welcome
!
Plexxi Switch 3eq is an Entry Series Plexxi switch that supports scale-out applications with high
performance East-West traffic needs. It does not contain Plexxi LightRail™ interfaces. Instead, it uses
10Gbit or 25Gbit parallel optics through the six QSFP28 interfaces to create a LightRail interface.
Each of the 32 QSFP28 interfaces supports 4x25GbE. Each port supports 1x10GbE, 4x10GbE, 1x40GbE,
4x25GbE, 2x50GbE or 1x100GbE. You can configure one or two LightRail interfaces using six or twelve
QSFP28 ports, starting from the right-most ports. This makes the total LightRail bandwidth identical to
the LightRail interfaces on other Plexxi Switches having one or two actual LightRail interfaces.

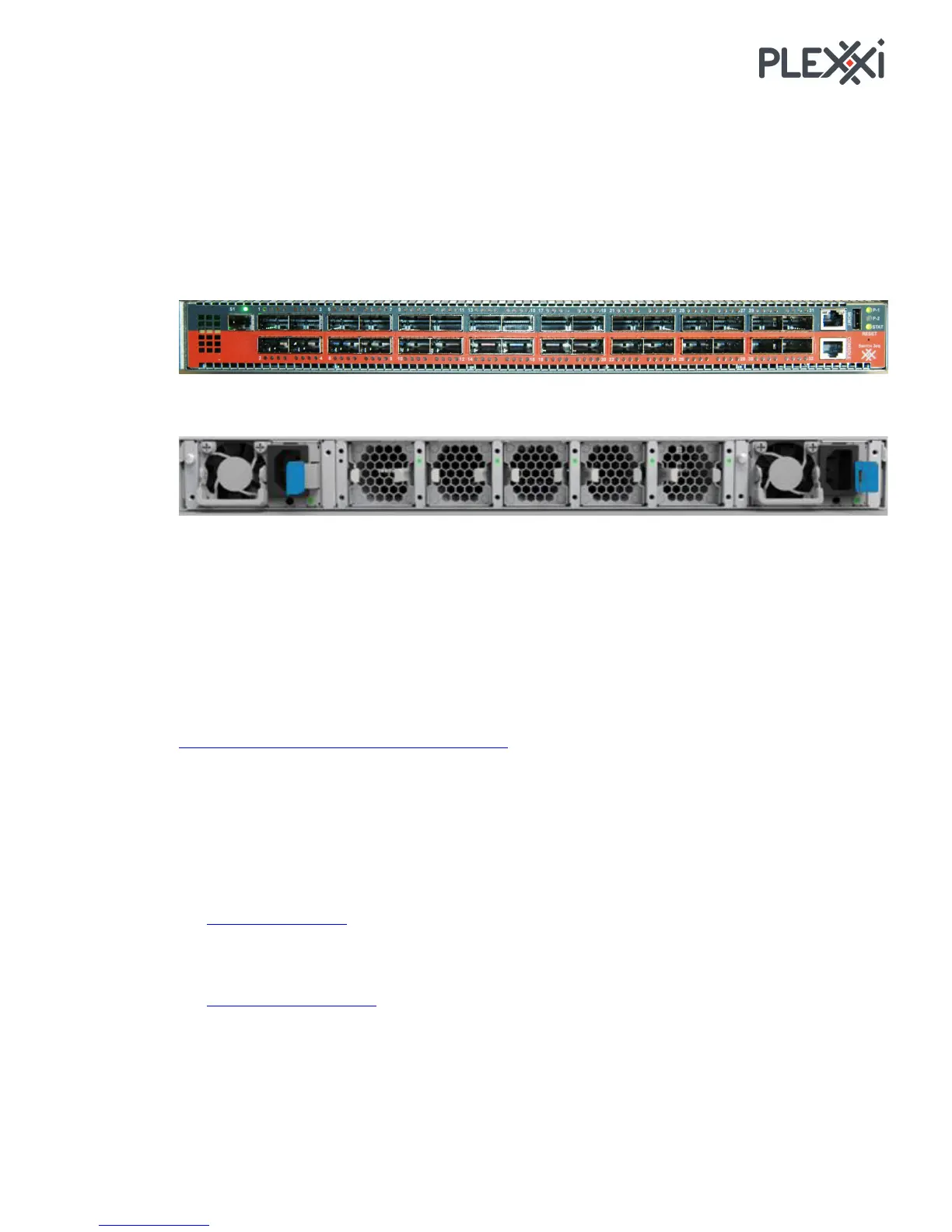

Switch 3eq I/O panel view
Switch 3eq power panel view
Related!Documentation!
In addition to this document, refer to the following documentation:
• Plexxi Compatibility Matrix, Rev 8, which identifies compatibility between the versions of Plexxi software
and identifies software upgrade paths/compatibility.
• Plexxi Switch Administrator Guide using Linux and Plexxi CLI, Releases 3.0.0 -3.2.x.
This documentation is available on the Plexxi Resources > Technical Documentation page:
http://www.plexxi.com/technical-documentation/
Contacting!Plexxi!Support!
Plexxi Technical Support services are available to answer your questions and to
make sure that your
software and hardware continue to operate properly.
You can contact Plexxi Support at:
support@plexxi.com
1.888.415.9809 (US/Canada toll-free)
+1 603-782-0702 (US/International)
http://support.plexxi.com
