SQF-3-32
29 November 2006
MECHANICS
[E]

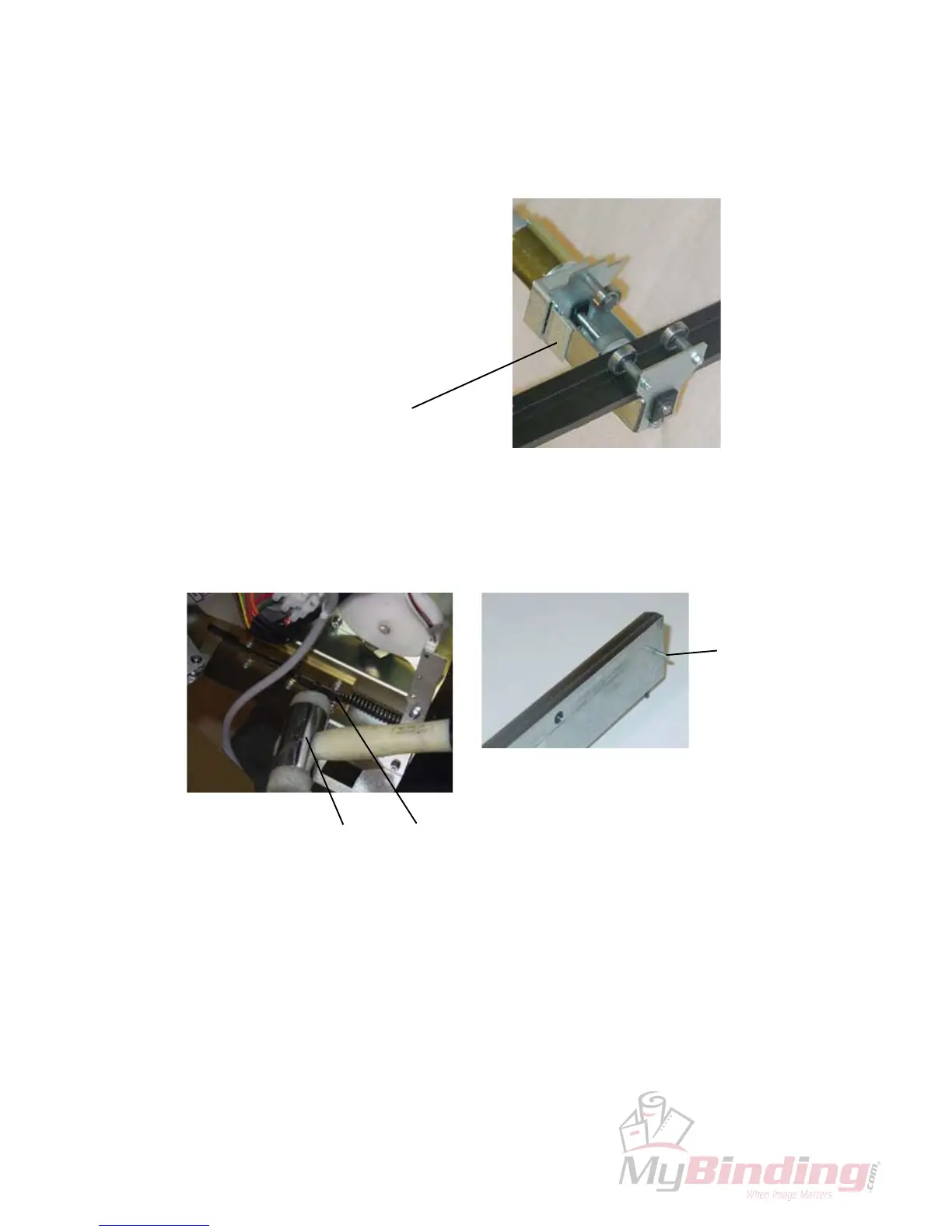

8. Remove upper clamp.
9. Grab the roller cage [E] (not the motor) and remove the ball bearings from the
rail, (downwards).
[F][G]
[H]
10. Loosen the lower clamp [F] by tapping gently, using a plastic hammer [G], on
lower clamp front side until the spring pressure is relieved.
11. Hold the roller cage down and remove the lower set clamp.
