PRINCIPLE OF OPERATION
SQF-Q4
SQF-Q7 SQF-Q6
SQF-Q5SQF-Q1
SQF-M3
SQF-M2
Initialization Cycle:
The SQF 200 performs an initialization-check at power on or when one of the
interlocks has been opened and closed.
Clamp motor SQF-M3 runs until the Clamp motor Home position sensor SQF-
Q4 is activated / deactivated, and reverses until sensor SQF-Q4 is activated /
deactivated. This is done to open up the gap between the Clamps. Stop Gate
motor SQF-M2 runs until the Stop gate sensor SQF-Q1 is activated / deactivated.
All the paper path sensors are checked SQF-Q5, SQF-Q6 and SQF-Q7 to make
sure that there is no paper in the machine. The Squarefolder is now in Ready

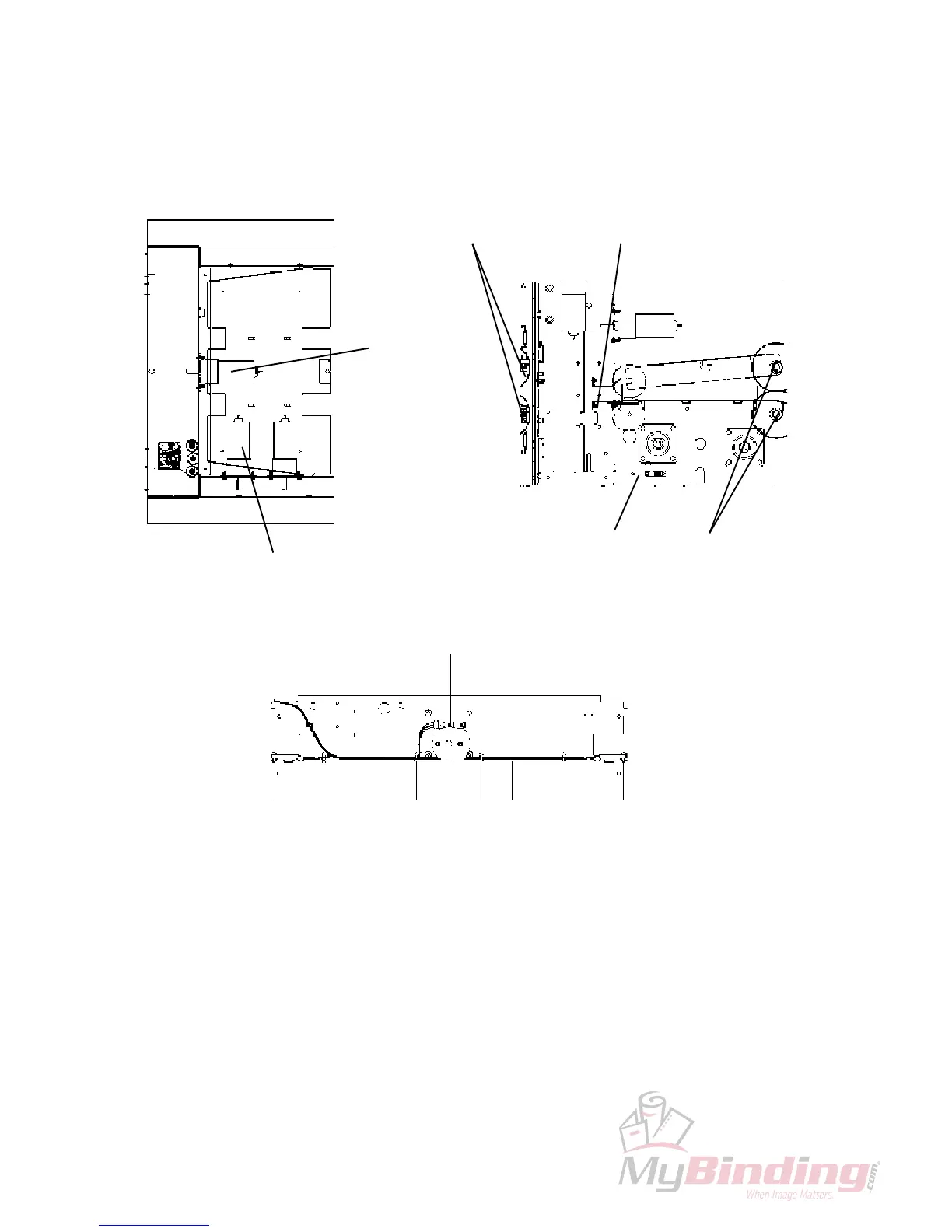

Top view
Front view
Set Clamp view,
seen from Outfeed view
