SQF-6-9
29 November 2006
Detailed De-
scription

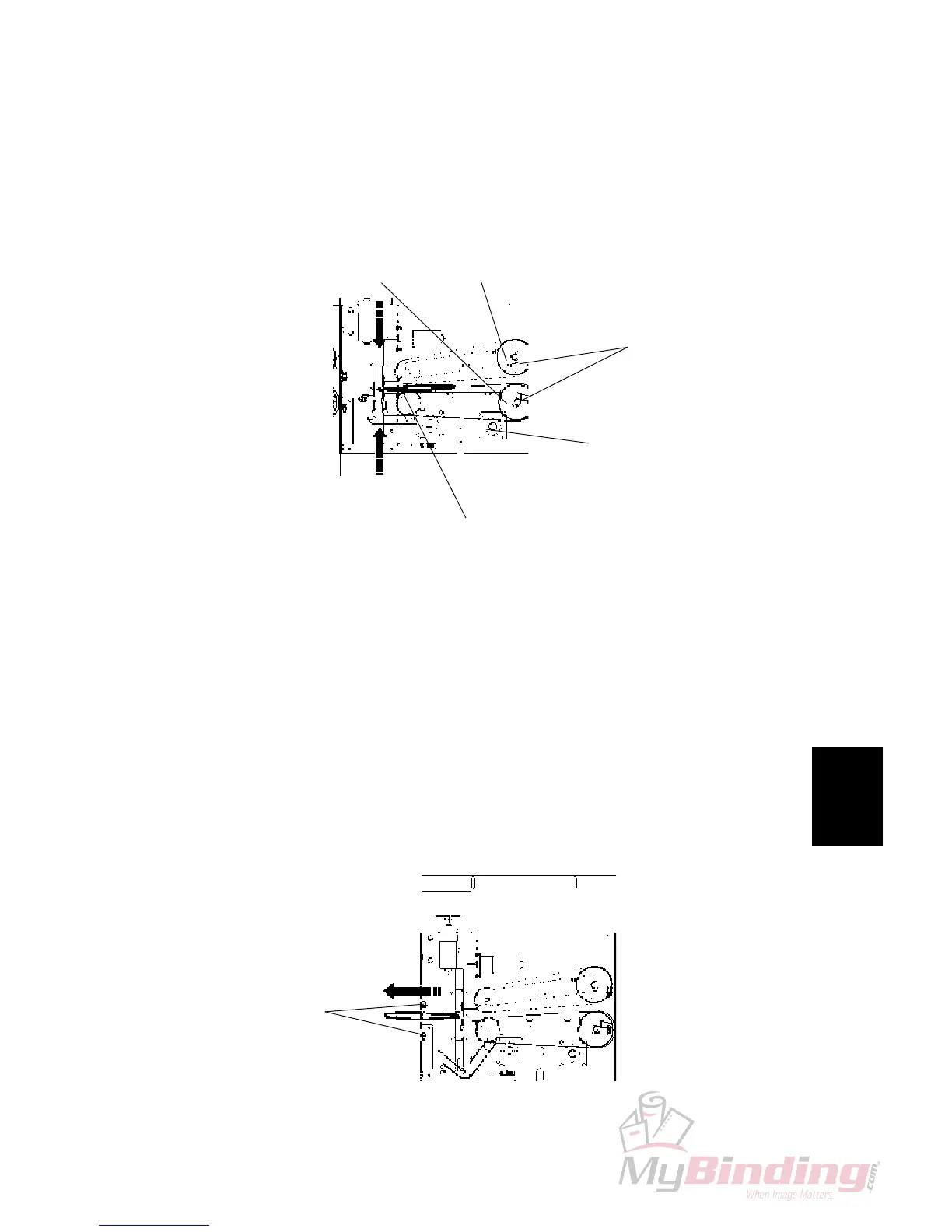

PRINCIPLE OF OPERATION
SQF-Q6
When Infeed sensor SQF-Q5 is activated, the Transport belt Motor SQF-M1 and
Solenoids SQF-SOL1-SQF-SOL4 are energized. When Clamp sensor SQF-Q6 is
activated, Belt Stacker motor ST-M1 (not shown in picture) continues to feed out
the set.
When Outfeed sensor SQF-Q7 is activated and deactivated, Transport Belt motor
SQF-M1, Solenoids SOL1-SOL4 and Stacker motor ST-M1 stops.
In OFF mode:
This mode is for booklets that cannot be Book folded:
SQF-Q7
SQF-M1
SQF-Q5
Front view
Front view
SQF-SOL2&4
SQF-SOL1&3
To Next Page
