Plockmatic SR90 - Cover Feeder Misfeed Clearing

5
38
Clearing Jams

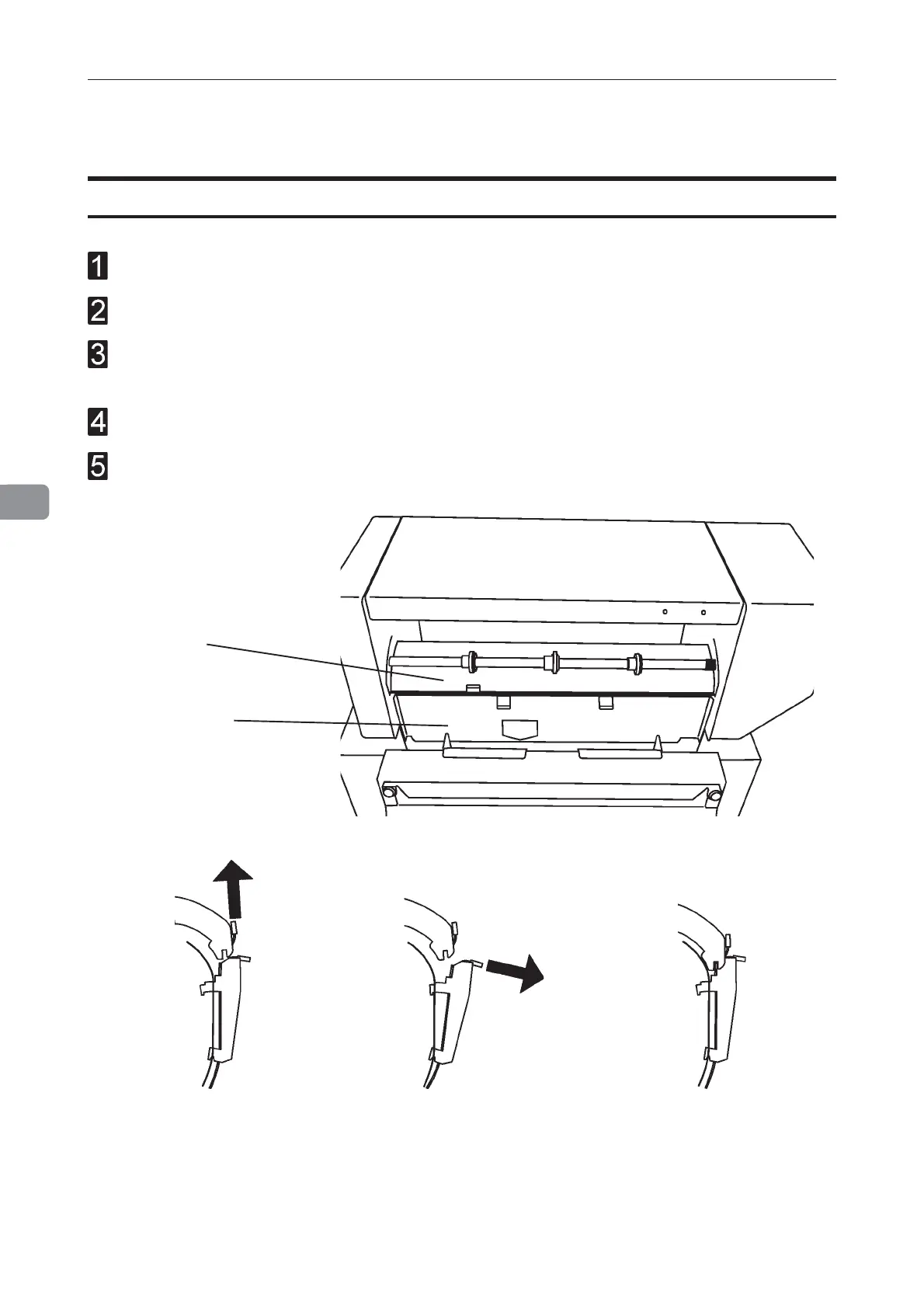

Clearing misfeed(s) in vertical transport area
Cover Feeder
Undock the Bookletmaker.
Lift up the upper paper path (spring loaded) (A).
Release the jam clearance baffle (B). If neccessary, the jam clearance baffle can be
removed.
Remove the misfed cover.
Put the jam clearance baffle back in normal position (C) and lock it with the upper paper
path.
B: Upper paper path lifted and
releasing jam clearance baffle
A: Lift upper paper path
Upper paper path
Jam clearance baffle
C: Normal
position
