17 Visualization
17.1 VWERT ( display / definition of process values )
General
This function permits display or definition of 6 analog or digital process values in 6 display lines.
w
Determination if the display line has digital or analog functions, or if it is switched off is made via
configurations (generation of an empty line in the display).
w
Normally, the values applied to the inputs are displayed.
w
A value adjustable at the front panel is output at the relevant function output.
w
The change of these values from the operating level can be switched off.
w
Parameters z1 ... z6 or y1 ... y6 are used as initial value for the outputs at power-on.
w
The output value is displayed only, if the output is fed back to the relevant input, or if the display for this value
is in the adjustment mode.
w
With a positive flank at the store input, the values applied to the remaining inputs are stored in parameters
z1 ... z6 and y1 ... y6 and thus used as output values.
Value changes are stored as parameters z1 ... z6 or y1 ... y6 in non-volatile EEPROM. With digital input lock
set, no values can be changed. With digital input hide set, the operating page cannot be displayed. The engineering
tool can be used to configure a 16-digit text for the display header and further texts for identification of value and unit,
or for the two digital statuses.
9499 040 50611 Visualization

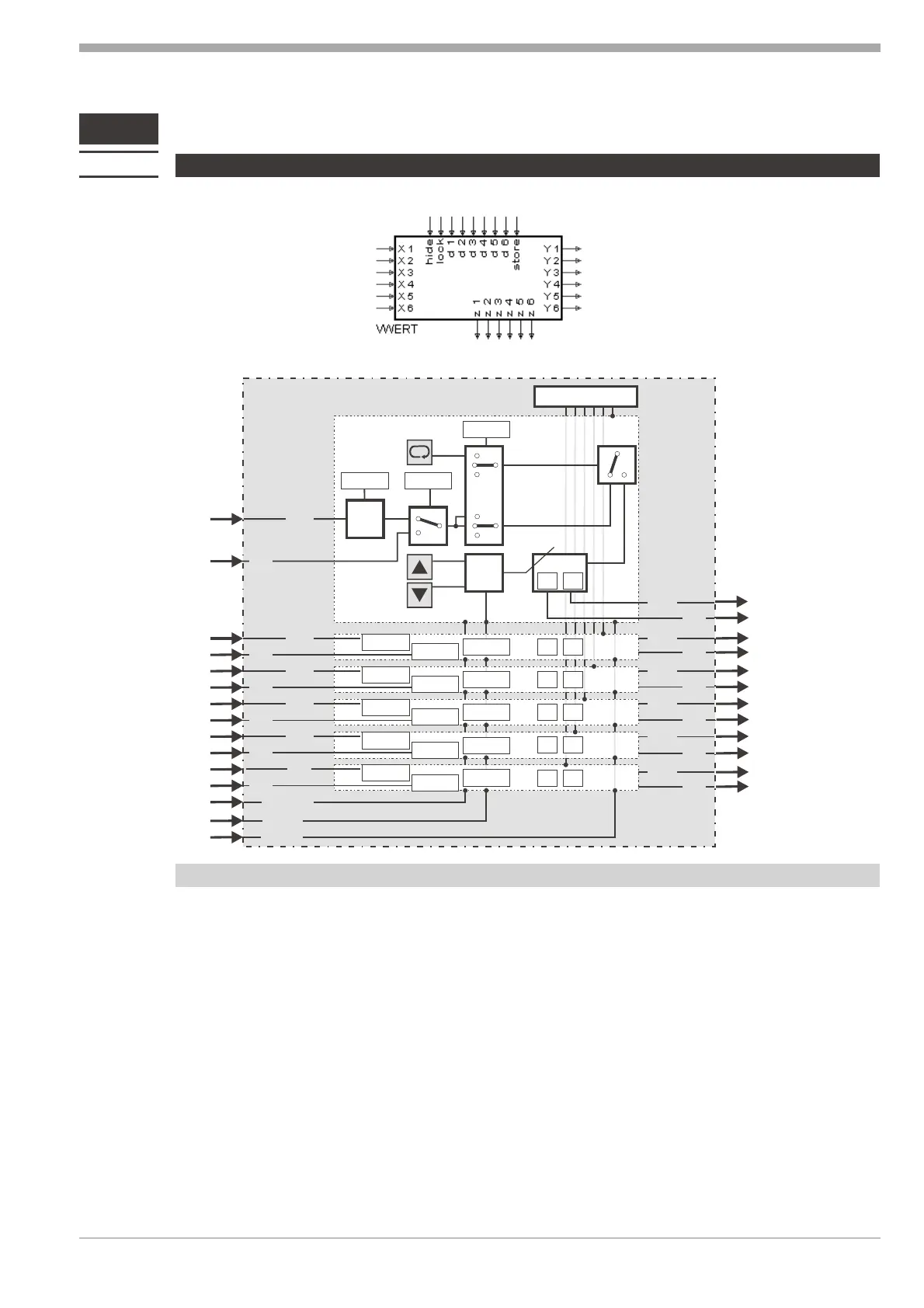

105 VWERT ( display / definition of process values )
Mode 1
Mode 2
Mode 4
Mode 3
Mode 5
Mode 6
Dp1
z2
z3
z4
z5
z6 Y6
Dp2
Dp4
Dp3
Dp5
Dp6
Disp 1
A.A
?1
store
lock
hide
Disp 2
Disp 3
Disp 4
Disp 5
Disp 6
Y5
Y4
Y3
Y2
Y1z1
x1
d1
x2
x3
x4
x5
x6
d2
d3
d4
d5
d6
y1
y2
y3
y4
y5
y6
z1
z2
z3
z4
z5
z6
