PMA KS 98 User Manual

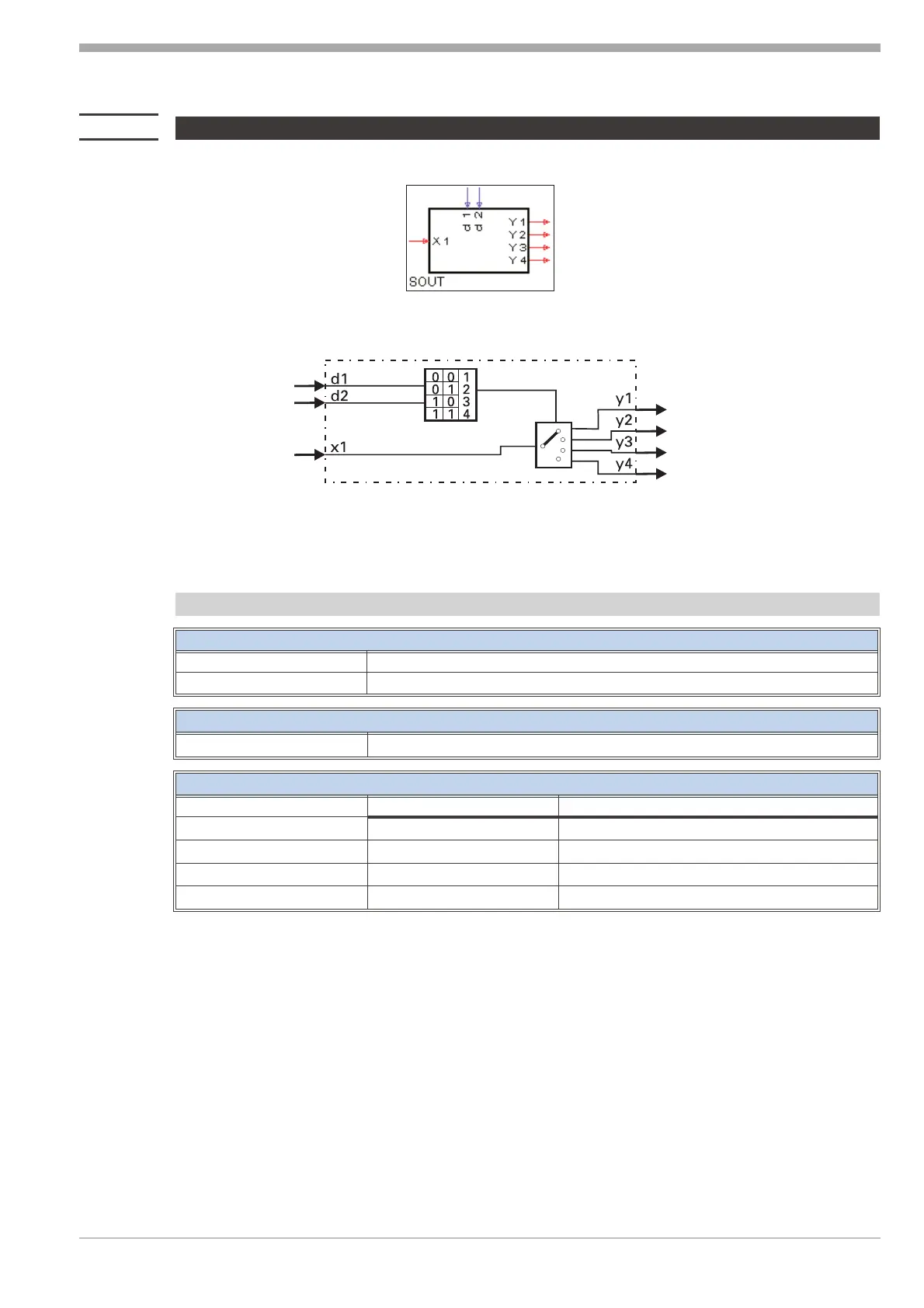

15.7 SOUT ( Selection of output )
Dependent of control signals d1 and d2,, input variable x1is connected to one of outputs y1, y2, y3 or y4.
Unused inputs are interpreted as 0 or logic 0.
Inputs/outputs
Digital inputs
d1
1st digital input for output selection
d2
2nd digital input for output selection
Analog input
x1
Input is output at y1, when d1 = 0 and d2 =0
Analog outputs
d1
d2
y1 = x1
00
y2 = x1
01
y3 = x1
10
y4 = x1
11
No parameters!
9499 040 50611 Selecting and storage
91 SOUT ( Selection of output )
