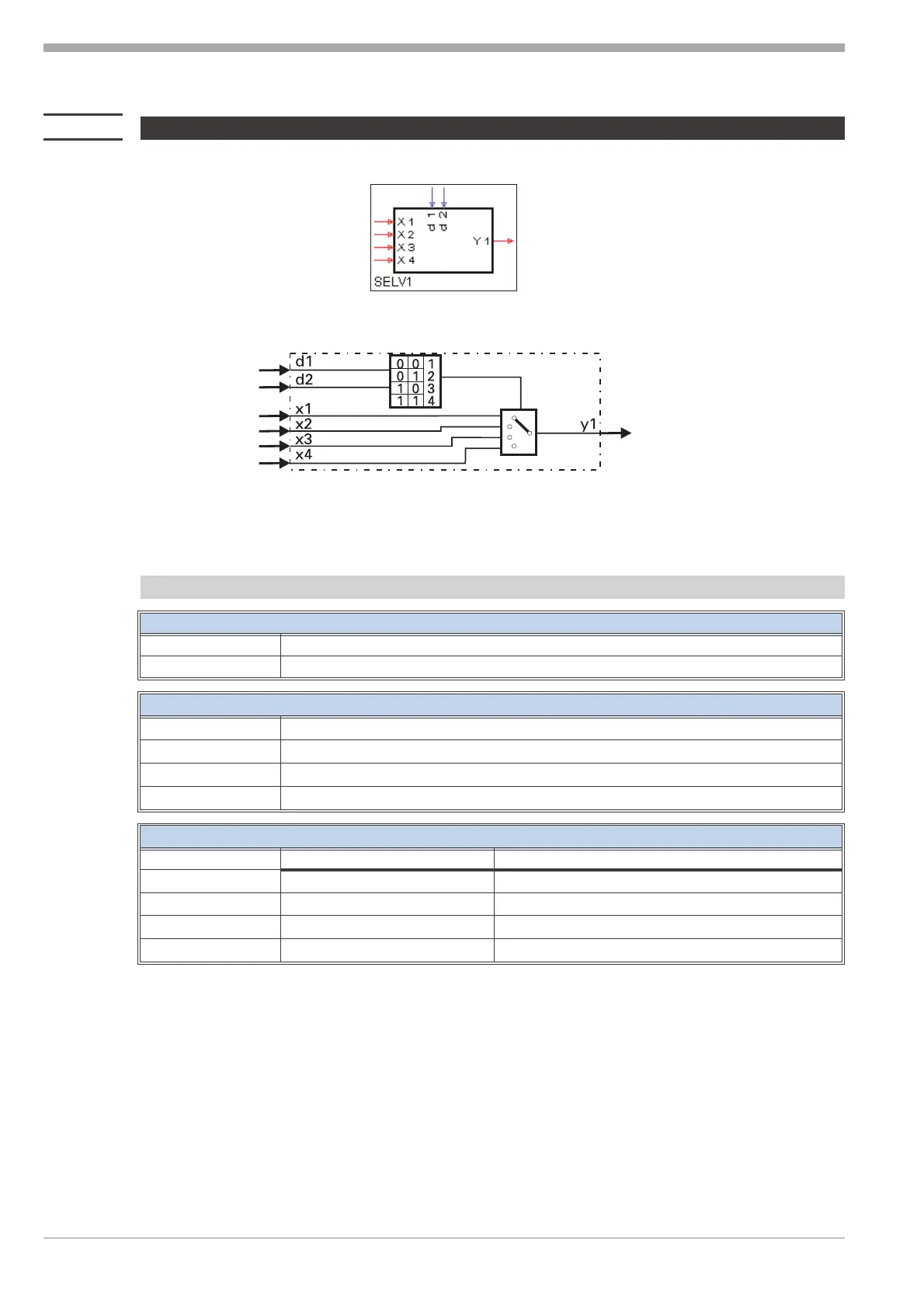

15.6 SELV1 ( variable selection )
Dependent of control signals d1 and d2, one of four inputs x1...x4 is connected with output y1.
Unused inputs are interpreted as 0 or logic 0.
Inputs/outputs
Digital inputs
d1
1st digital input for parameter selection
d2
2nd digital input for parameter selection
Analog inputs
x1
Input is output at y1, when d1 = 0 and d2 =0
x2
Input is output at y1, when d1 = 0 and d2 =1
x3
Input is output at y1, when d1 = 1 and d2 =0
x4
Input is output at y1, when d1 = 1 and d2 =1
Analog outputs
d1
d2
y1 = x1
00
y1 = x2
01
y1 = x3
10
y1 = x4
11
No parameters!
Selecting and storage 9499 040 50611
SELV1 ( variable selection ) 90
