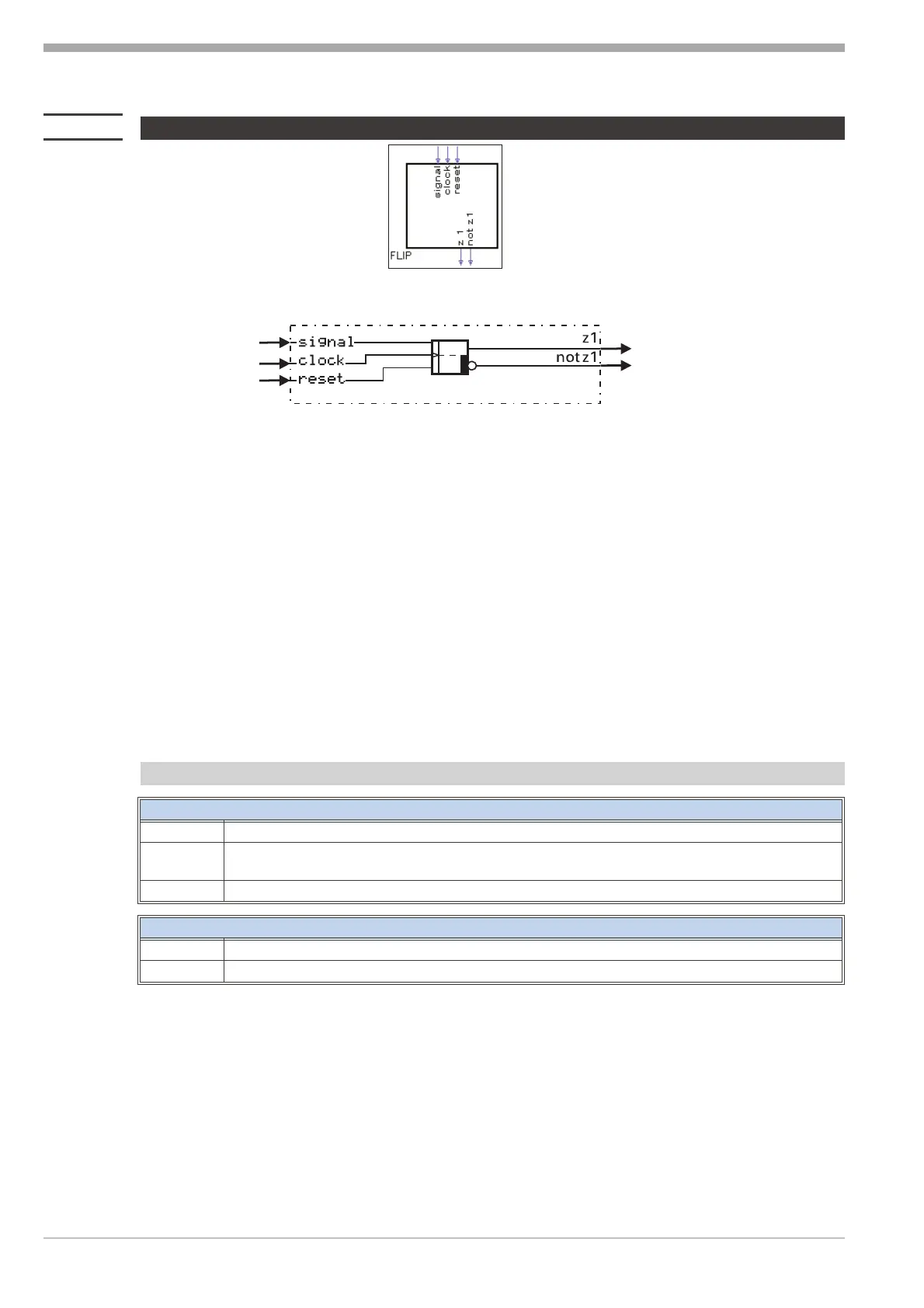

12.6 FLIP (D flipflop)
The digital signal status at static input signal is transferred to output z1 when
w
the signal at clock input clock changes from 0 to 1 (positive flank), and
w
when input reset is logic 0.
With reset = 1, output z1 is forced to 0 independent of inputs signal and clock.
reset has priority!
Input signals signal, clock and reset must be available at least for the duration of sampling interval T
r
se-
lected for this block (100, 200, 400 or 800ms).
In the switch-on status (initial condition), z1 =0!
Unused inputs are interpreted as logic 0.
a
This function has a “memory”. This means: after power-on, it continues operating with the statuses at z1 and
not z1, which existed at power-off, provided that the RAM data are still unchanged.
Inputs/outputs
Digital inputs
signal
D input - This signal is output via z1 by the positive flank (0 r 1) of clock, when reset is not 1.
clock
Clock input - A positive flank transfers the instantaneous status at input Signal to output z1, when
reset is not 1.
reset
Reset input - sets z1 to 0
Digital outputs
z1
Flipflop output
not z1
Flipflop output NOT z1
