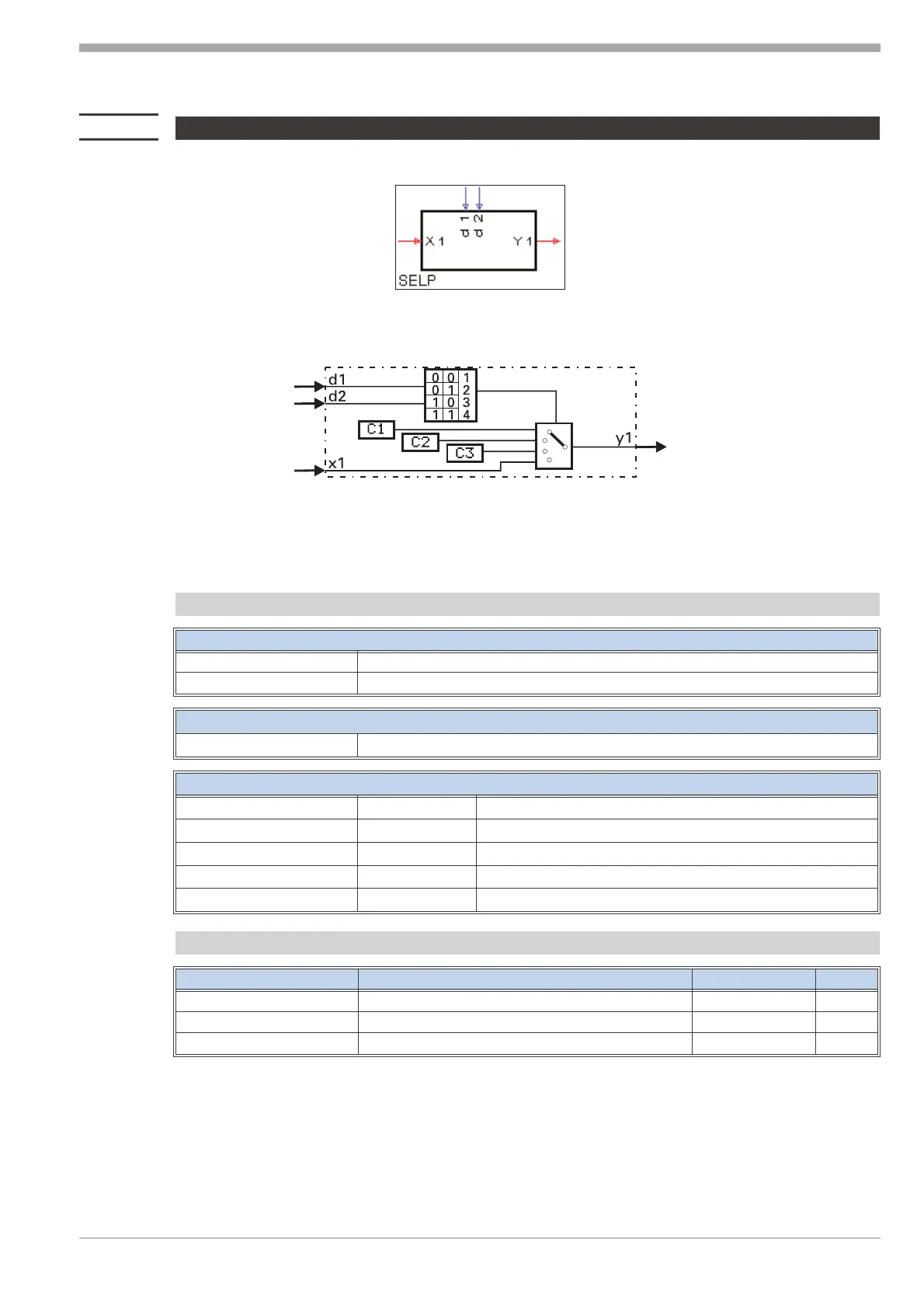

15.5 SELP ( parameter selection )
Dependent of control signals d1 and d2, either one of the three preset parameters C1, C2, C3 or input variable x1 is
connected with output y1. Unused inputs are interpreted as 0 or logic 0.
Inputs/outputs
Digital inputs
d1
1st digital input for parameter selection
d2
2nd digital input for parameter selection
Analog input
x1
Input is output at y1, when d1 = 1 and d2 =1
Analog outputs
d1 d2
y1=C1
00
y1 = C2
01
y1 = C3
10
y1 = x1
11
Parameters
:
Parameter Description Range Default
C1
1st constant, output at y1 with d1 = 0 and d2 = 0 . -29 999...999 999 0
C2
2nd constant, output at y1 with d1 = 0 and d2 = 1 . -29 999...999 999 0
C3
3rd constant, output at y1 with d1 = 1 and d2 = 0 . -29 999...999 999 0
9499 040 50611 Selecting and storage
89 SELP ( parameter selection )
