changed, the ride will be compromised. Always maintain equal
adjustment on both sides.

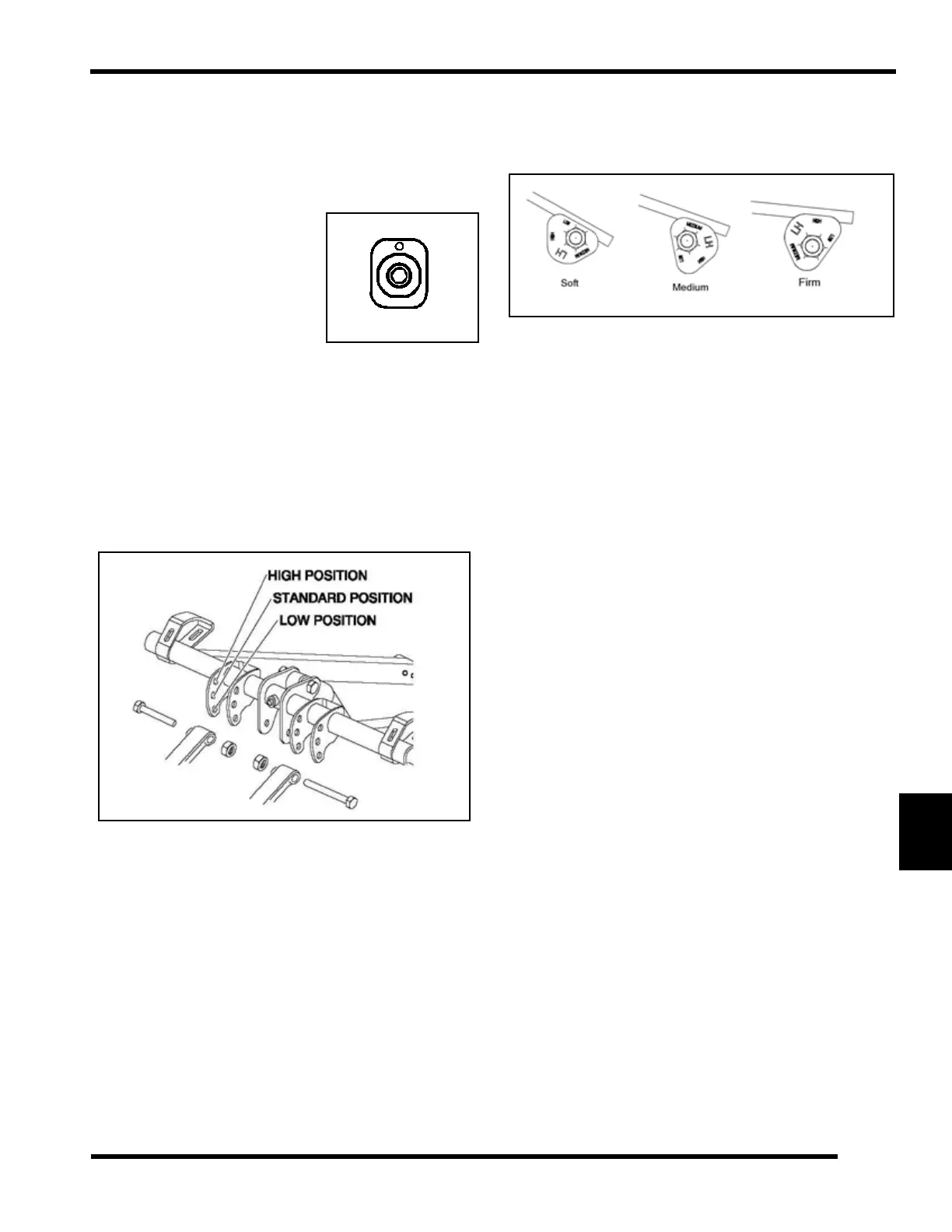

To adjust the scissor stops place the scissor tool onto the scissor
block and turn to the desired position. Ensure that the rear
scissor stop face is square with the face of the scissor arm to
ensure complete contact.
The dot is an indicator of the HIGH
position. The sides are the LOW
position and the bottom is the
MEDUIUM position.
Front Torque Arm Limiter
Strap Adjustment
One method of changing ski-to-snow
pressure is to change the length of the
front torque arm limiter straps. The limiter strap is normally
mounted in the fully extended position. Both limiter straps must
be adjusted evenly and remain equal in length to avoid improper
Hi-Fax and track wear.
• Lengthening the straps decreases ski pressure under
acceleration.
• Shortening the straps increases ski pressure under
acceleration.
RMK/Switchback set up recommendations for optimum
performance.
• DEEP POWDER SNOW:FTA in LOW position for
maximum lift and flotation.
• POWDER-HARDPACK:FTA in STANDARD position
for overall handling and speed over snow.
• HARDPACK: FTA in HIGH position for increased
control and less transfer.
Torsion Spring Adjustment
To adjust the rear torsion spring, rotate the adjuster cam to the
desired adjustment. The cam has three sides, LOW, MEDIUM
and HIGH.
NOTE: It is easier to go from Low to Med to High
then go directly form Low to High.
HIGH
LOW
LOW
MEDIUM
RMK/Switchback
