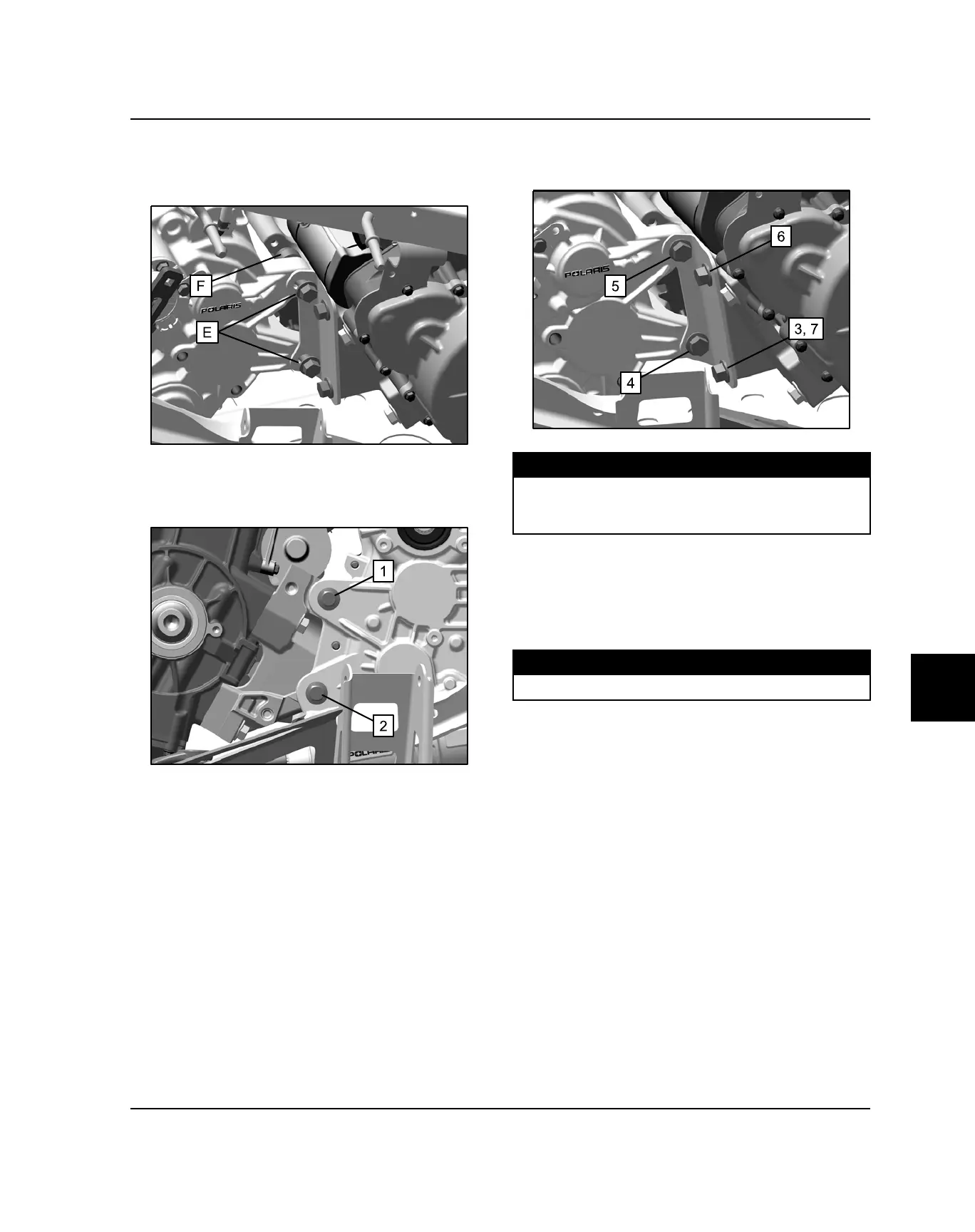

7. Install the (2) bolts (E) and transmission joint retainer
plate (F) on the right side. Hand tighten the bolts so
they remain loose at this time.
8. Install the (2) longer bolts into left side mounting
holes. Torque left side mounting bolts to specification
using the numbered sequence shown.
9. Torque right side mounting bolts to specification
using the numbered sequence shown.
TORQUE
Engine / Transmission Mounting Bolts:Step 1-2: 64 ft-
lbs (87 Nm)Step 3: 5 ft-lbs (7 Nm)Step 4-7: 44 ft-lbs
(60 Nm)
10. Remove the clutch center distance tool.
11. Remove the spacer or support between the vehicle
frame and engine.
12. Torque the rear transmission mount bolt (B) to
specification.
TORQUE
Rear Transmission Mount Bolt:40 ft-lbs (54 Nm)
13. Remove the lifting straps and overhead or portable
hoist.
TRANSMISSION
