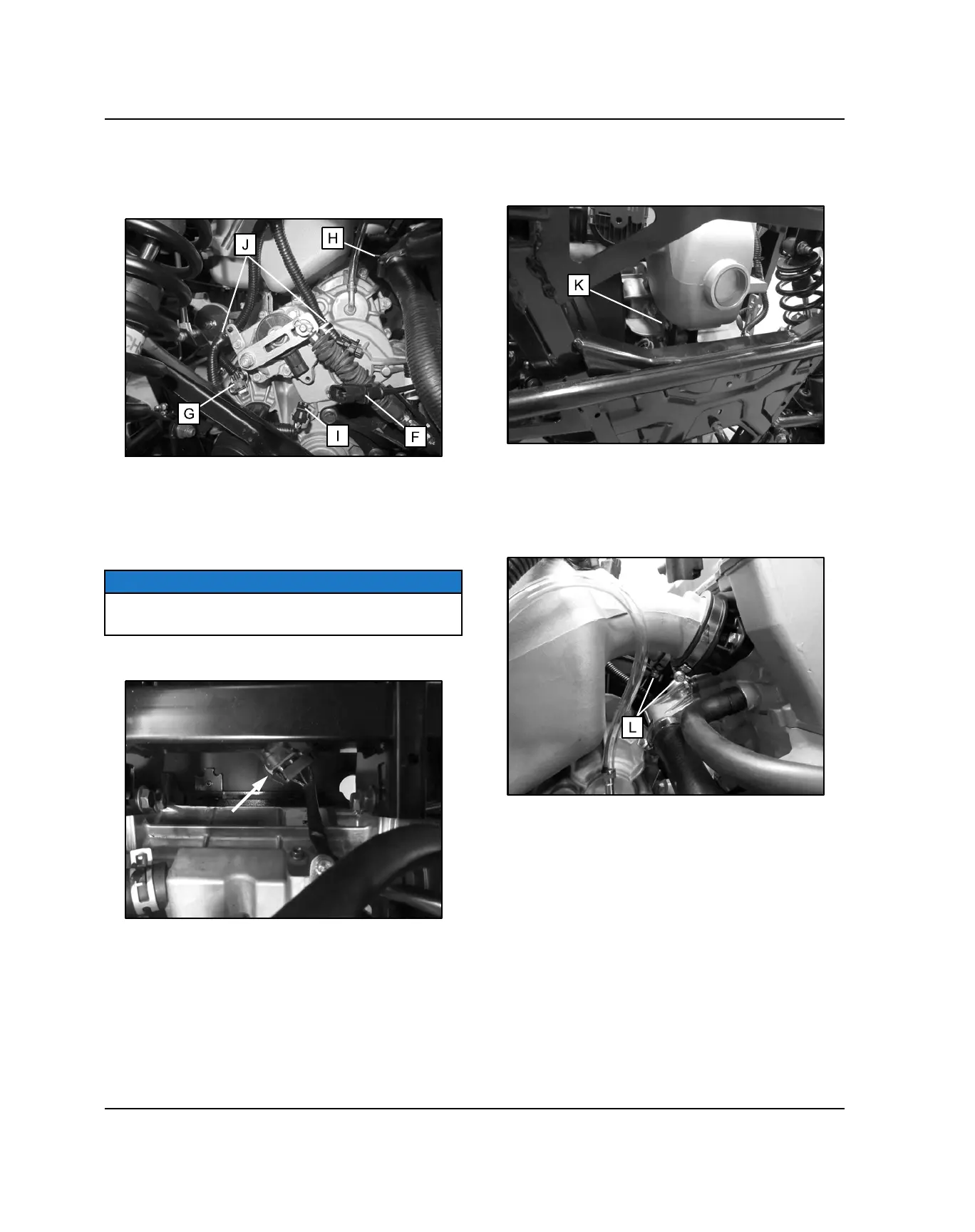

9. Disconnect the CPS (F), vehicle speed sensor (G),
ECT sensor (H) and transmission switch (I). Remove
the (2) plastic tie straps (J) retaining the harness to
the transmission.
10. Using an 8mm socket, remove the (2) bolts retaining
the fuel rail and fuel injectors. Remove the fuel rail
assembly from the intake and position the assembly
to allow engine removal.
11. Remove the spark plug wires from the engine.
NOTE
The spark plug wires are marked with MAG and PTO.
Note during installation procedure.
12. Disconnect the stator harness in front of the engine.
13. Using a 13mm socket and wrench, remove the
fastener (K) securing the bottom of the intake
plenum to the rear transmission mount.
14. Using a long screwdriver, loosen both hose clamps
(L) that retain the intake plenum runners to the
cylinder head intake adaptors. Remove the intake
plenum and electronic throttle control as an
assembly.
15. Use an overhead or portable engine hoist and
suitable engine straps to secure engine in its current
position.
