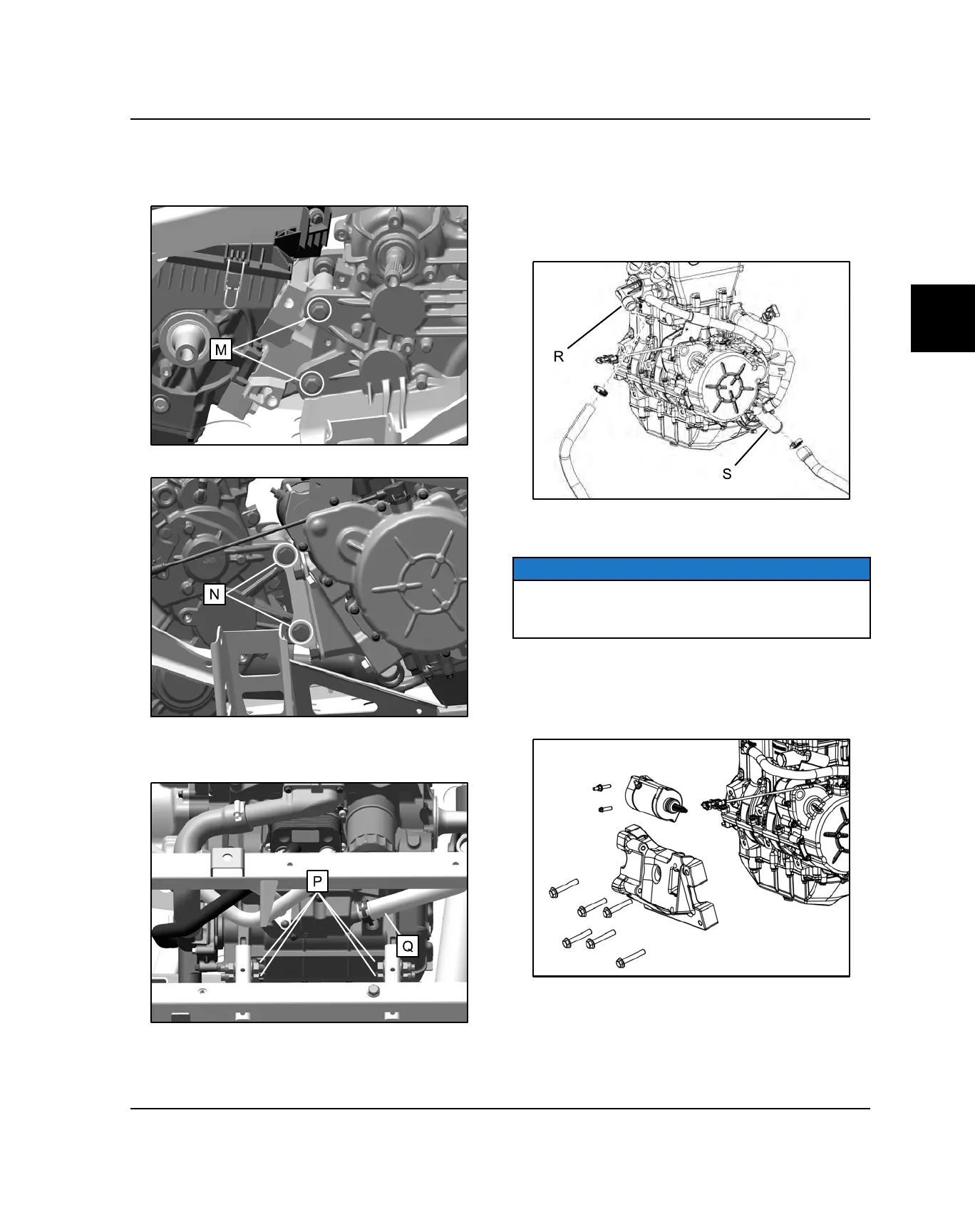

16. Using a 15mm socket, remove the (4) bolts from the
left side (M) and right side (N), securing the
transmission to the engine.
17. Using a 15mm socket, remove the (4) fasteners (P)
securing the front of the engine to the mount bracket.
18. Remove the crankcase breather hose (Q) from the
engine.
19. Remove (+) positive and (-) negative cables from the
starter motor.
20. Place a suitable drain pan under the vehicle.
Remove the coolant hoses from the thermostat cover
(R) and water pump inlet (S). Dispose of used engine
coolant properly.
21. With the help of an assistant and the engine hoist,
raise the engine vertically out of the vehicle frame.
NOTE
Have an assistant help guide the engine in and out of
the vehicle while using an engine hoist to prevent
personal injury or damage to vehicle components.
22. Remove the starter motor bolts and starter motor
from the engine.
23. Remove the (6) transmission joint bracket bolts and
transmission joint bracket from the engine.
24. Install the engine stand adapter (PU-50562) onto the
engine where the starter motor was located.
