7.11
CVT / TRANSMISSION
7
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.

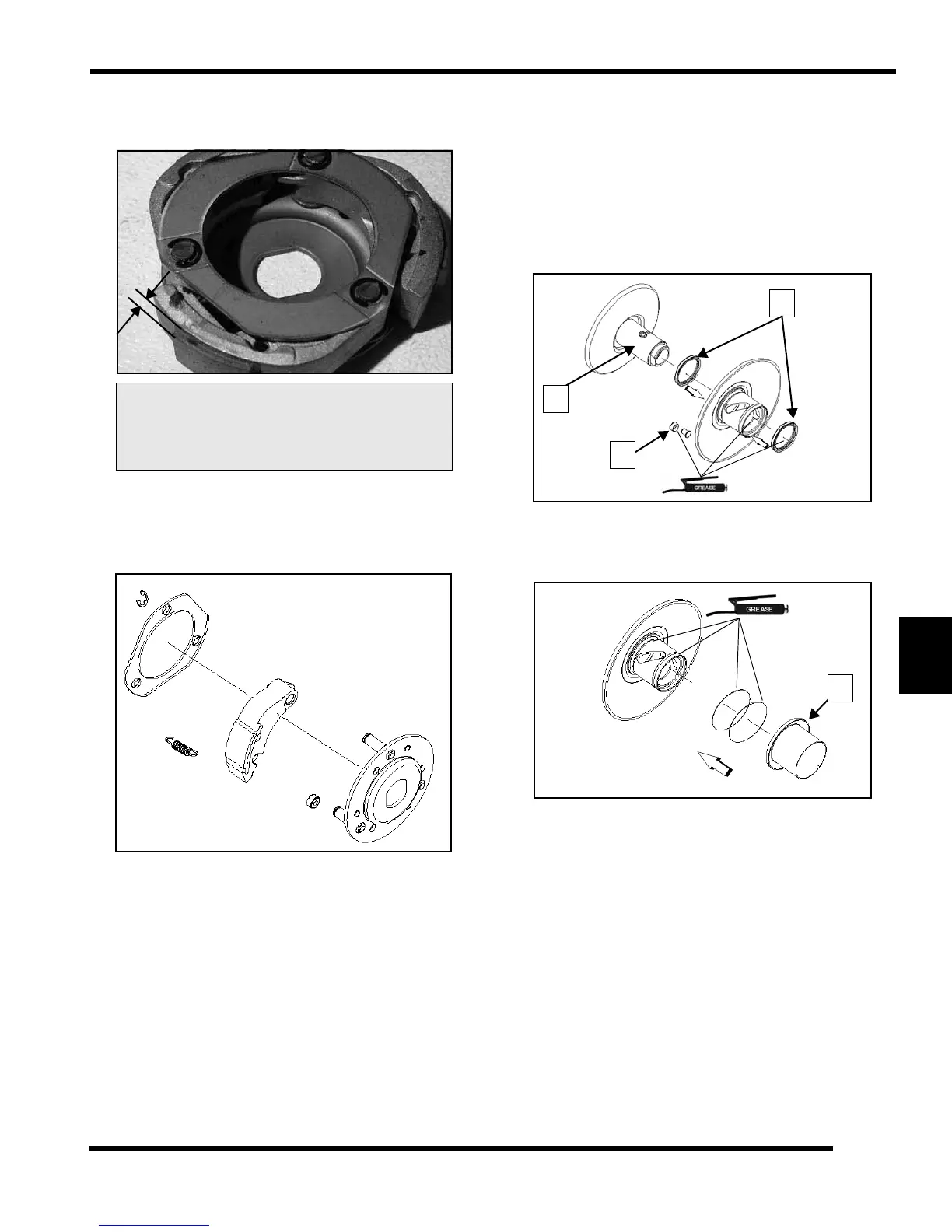

13. Measure thickness of friction shoe material. Replace
shoes, as a set, if worn beyond service limit.
14. To replace friction shoes, remove E-clips that retain
the backing plate. Use a suitable tool to remove and
install the return springs, using care not to stretch
springs more than required for installation.
Driven Clutch Assembly
1. Press new seals (A) into moveable sheave with seal
lips facing inward. Press seals flush with edge of seal
bore.
2. Fill outer cavity between seals (roller area) with
grease and slide moveable sheave onto post of
stationary sheave (B).
3. Align and insert (3) roller/pin assemblies (C).
4. Lubricate and install new O-rings in grooves of driven
sheave, then install outer roller pin cover (D) until
flange is firmly seated against sheave.
5. Clean threads (E) to remove all oil, grease, or old
locking agent then apply a few drops of Loctite 272.
Driven Clutch Friction Shoe
Thickness
Service Limit: .039” (1.0mm)
