NOTE: Tapping the mag end of the crankshaft with a
soft-face hammer may also install the crankshaft in
the PTO side. Use care not to damage the crankshaft
end.
6. Loop the cam chain through the chain room and
secure with mechanic’s wire.
7. Install the two mag side flange bolts and torque to
specification.

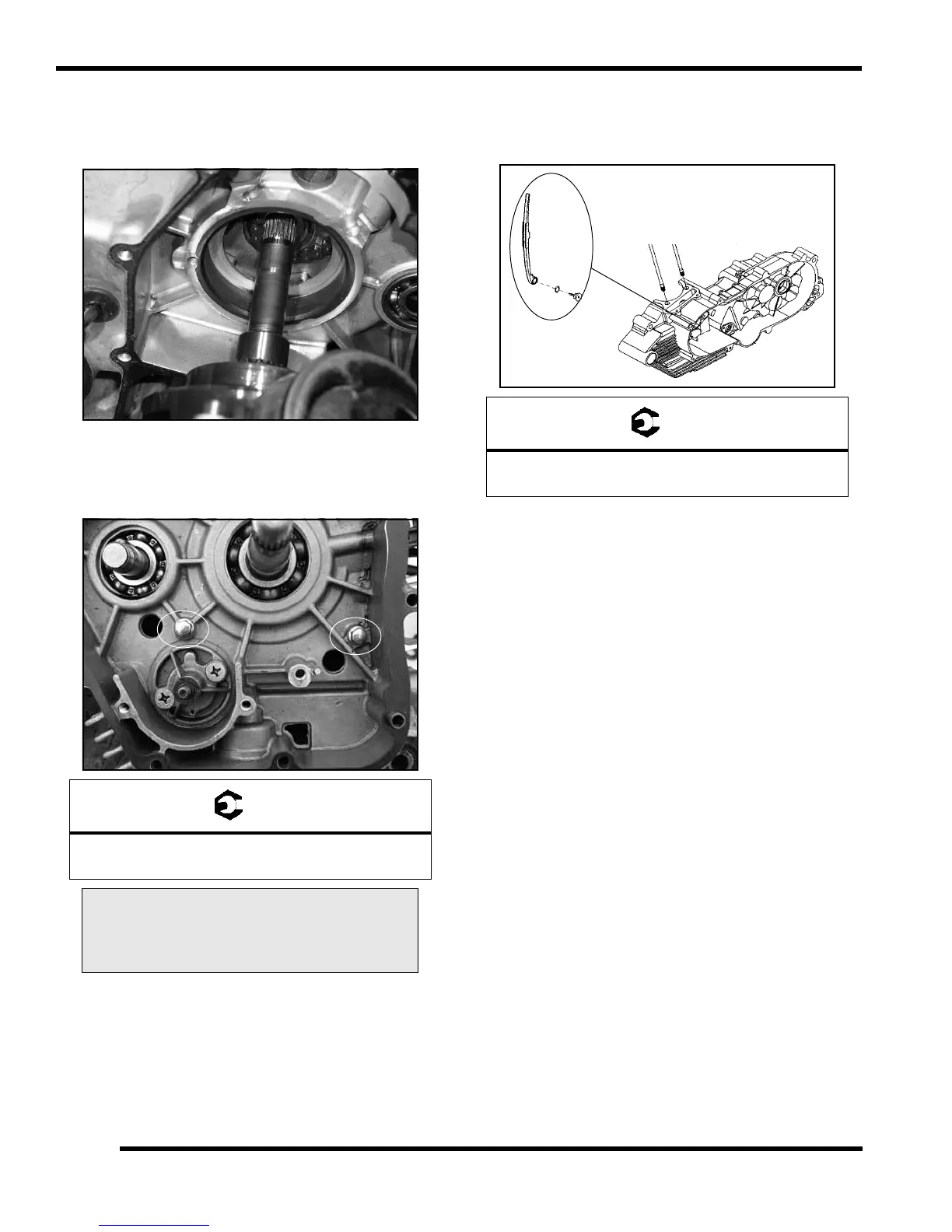

Chain Guide/Tensioner Installation
1. Install the chain guide and tighten the mounting bolt
to specified torque.
= T
Crankcase Bolt Torque:
14 - 15 ft-lbs (19-21 Nm)
Crankcase Sealant
PN 2871557
= T
Chain Guide Bolt:
5-6.5 ft-lbs (7-9 Nm)
