Cooling Shroud Removal/Installation
The cooling shroud directs air generated by the fan around
the cylinder and casing for cooling.
REMOVAL:
1. Remove the carburetor and intake.
2. Remove the exhaust pipe.
3. Remove the screws that attach the fan shroud (A) to
the housing (C).
4. Remove the bolts that attach the fan shroud to the
stator housing.
5. Remove the screws that attach the upper and lower
housings together (C).
6. Remove the bolt that attaches the housing to the
engine case on the PTO side.
7. Separate the upper and lower housings at the snap-
hooks and lift housings away from the engine.
INSTALLATION:
8. Install the upper and lower housings (C), making sure
the snap-hooks are secure. Install the housing screws
and attaching bolt into the engine case. Hand tighten
sufficiently, using care not to over-tighten.
9. Install the fan shroud (A) and attaching screws to
housing (C). Install the fan shroud bolts to the stator
housing. Hand tighten sufficiently, using care not to
over-tighten.
10. Install the exhaust pipe onto the cylinder. Torque to
specification.
11. Install the carburetor and intake. Torque fasteners to
specification.
Pipe Flange Fasteners:
7-8 ft. lb. (9-11 Nm)
Fasteners:
7-8 ft. lb. (9-11 Nm)
A. Fan Shroud
C. Housing
A
B
C
B. Air Horn Assembly

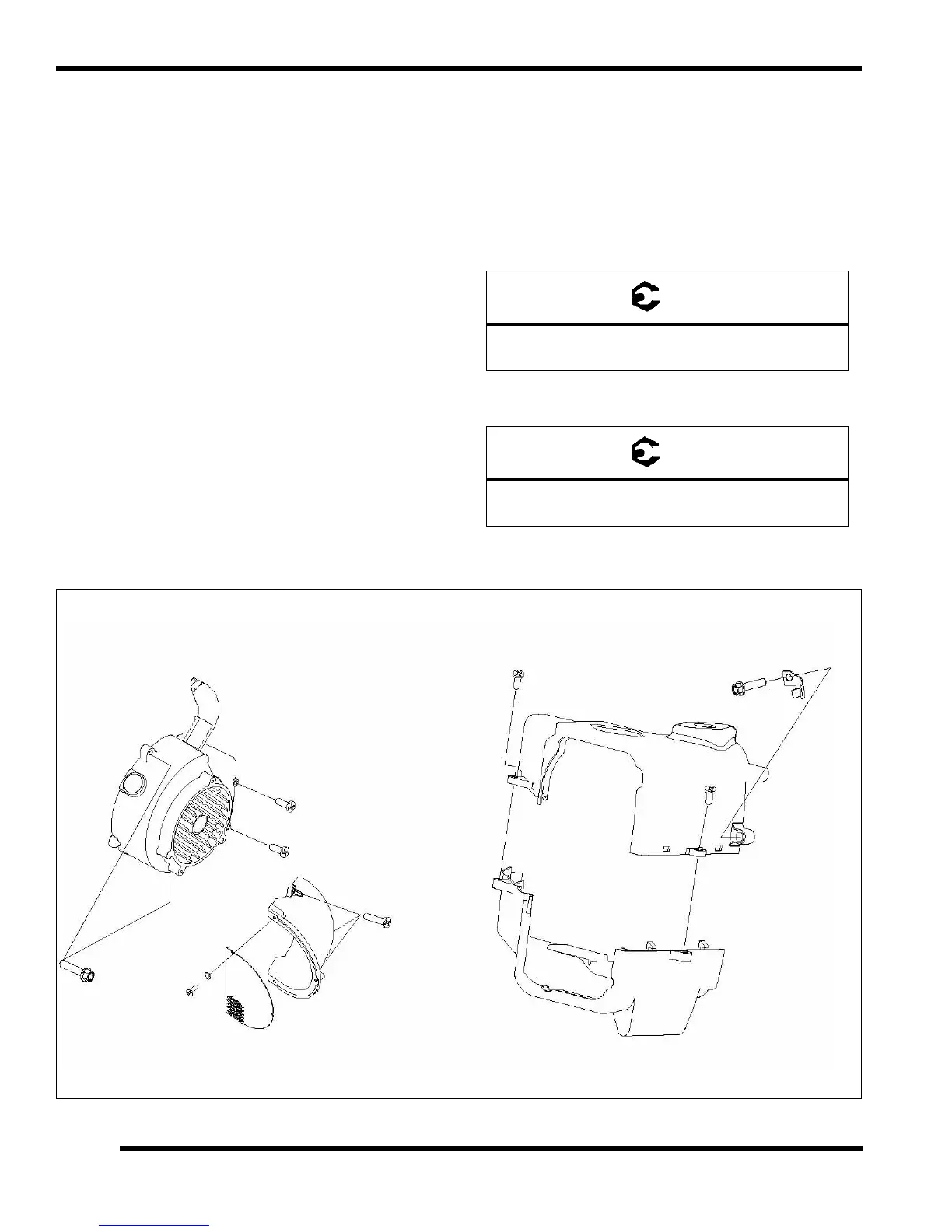

Cooling Shroud Exploded View
MAG View
PTO View
To Next Page
