Polaris RZR XP4 1000 2016

3.50
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

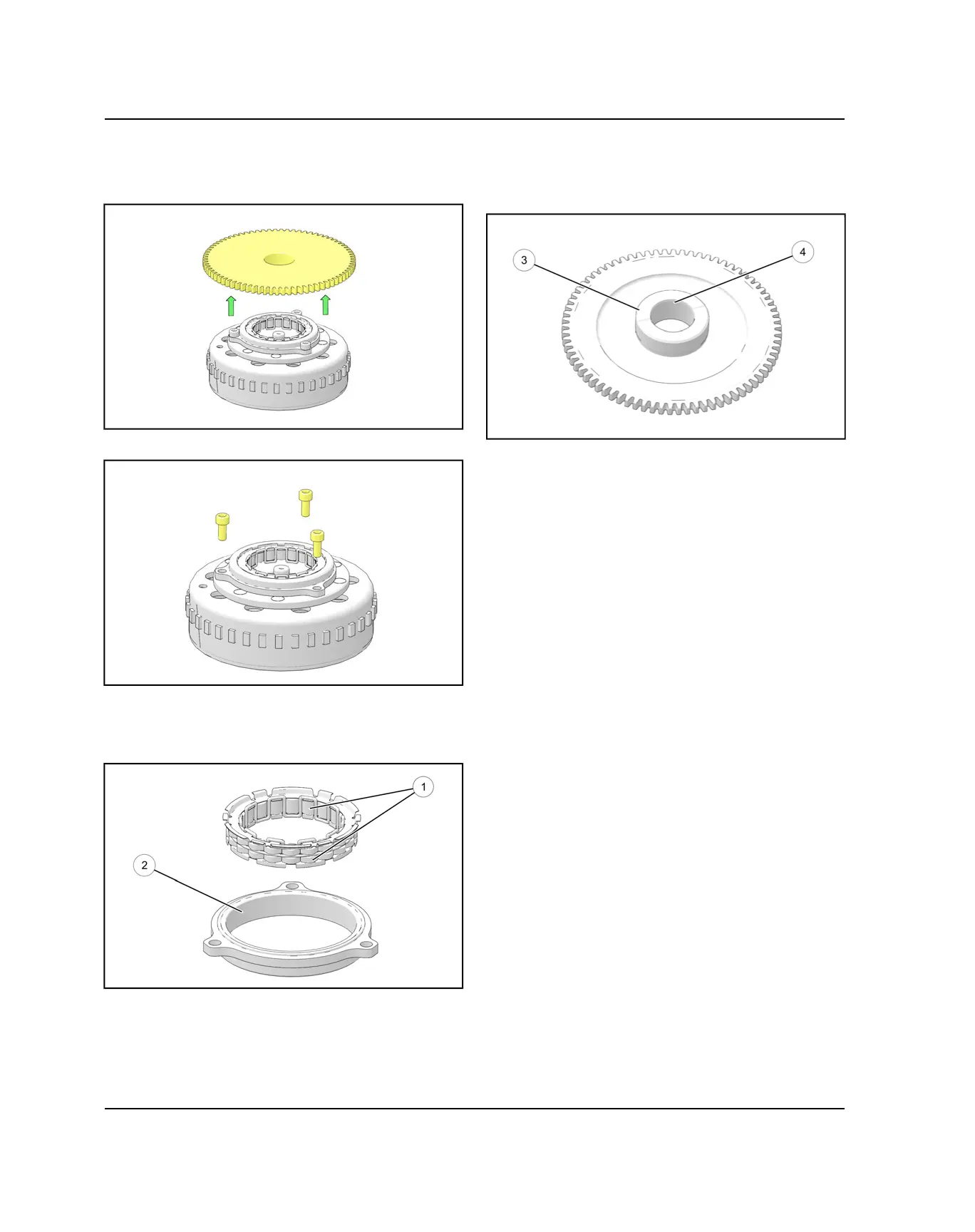

STARTER ONE-WAY CLUTCH
DISASSEMBLY
1. Lift up to remove starter one-way gear.
2. Remove the three one-way clutch retaining screws.
3. Remove the one-way clutch and inspect both sides
of drive rollers
q
. Inspect the roller contact surface
w
inside the hub for wear, damage or uneven
surface.
4. Inspect drive surface of starter gear
e
and bushing
r
for wear, damage or uneven surface. If any starter
one-way clutch component is worn or damaged,
replace the clutch and starter gear as an assembly.
ENGINE / COOLING SYSTEM
