2.34
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
SHOCK COMPRESSION ADJUSTMENT
(WALKER EVANS™)

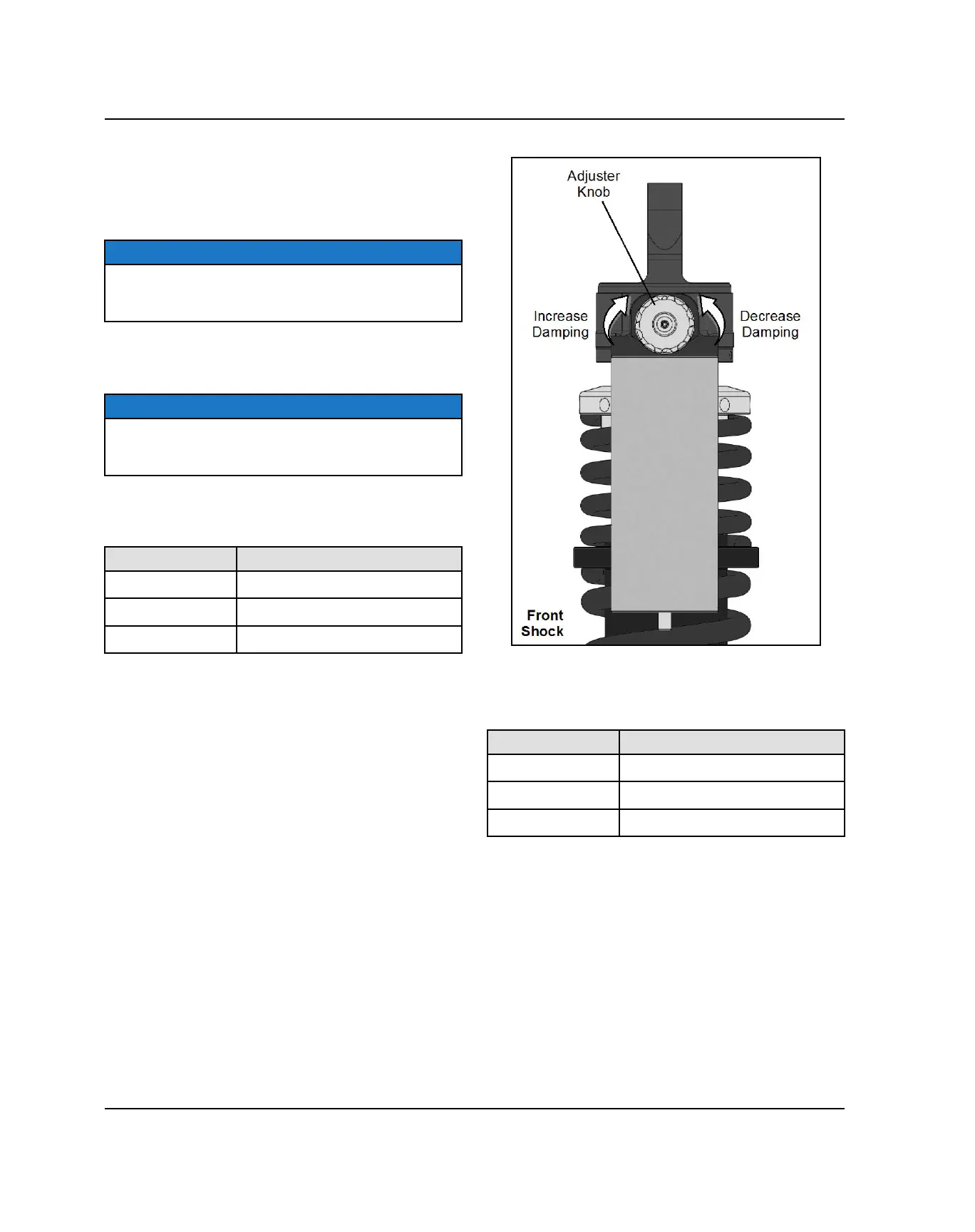

The compression damping adjustment is located on the
shock ‘Piggyback’ reservoir of each shock. Damping
adjustments can be made without using any tools.
NOTE
When the adjuster knob is turned counter-clockwise
until it stops, the damping is in the fully open position
(softest).
Turn the adjuster knob clockwise to increase
compression damping. Turn the adjuster knob counter-
clockwise to decrease compression damping.
NOTE
The recommended factory setting for the front and rear
shocks are provided in the following compression
adjustment tables.
Walker Evans™ 2.0" Front Shock:
Compression Adjustment Table
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory
6 clicks from softest position
Firmest
Full clockwise position
Walker Evans™ 2.5" Rear Shock:
Compression Adjustment Table
SETTING COMPRESSION DAMPING
Softest
Full counter-clockwise position
Factory
7 clicks from softest position
Firmest
Full clockwise position
The rear shock adjuster can be found on the remote
reservoir. Clockwise will increase damping and counter-
clockwise will decrease damping.
MAINTENANCE
