Polaris RZR XP4 1000 2016

4.4

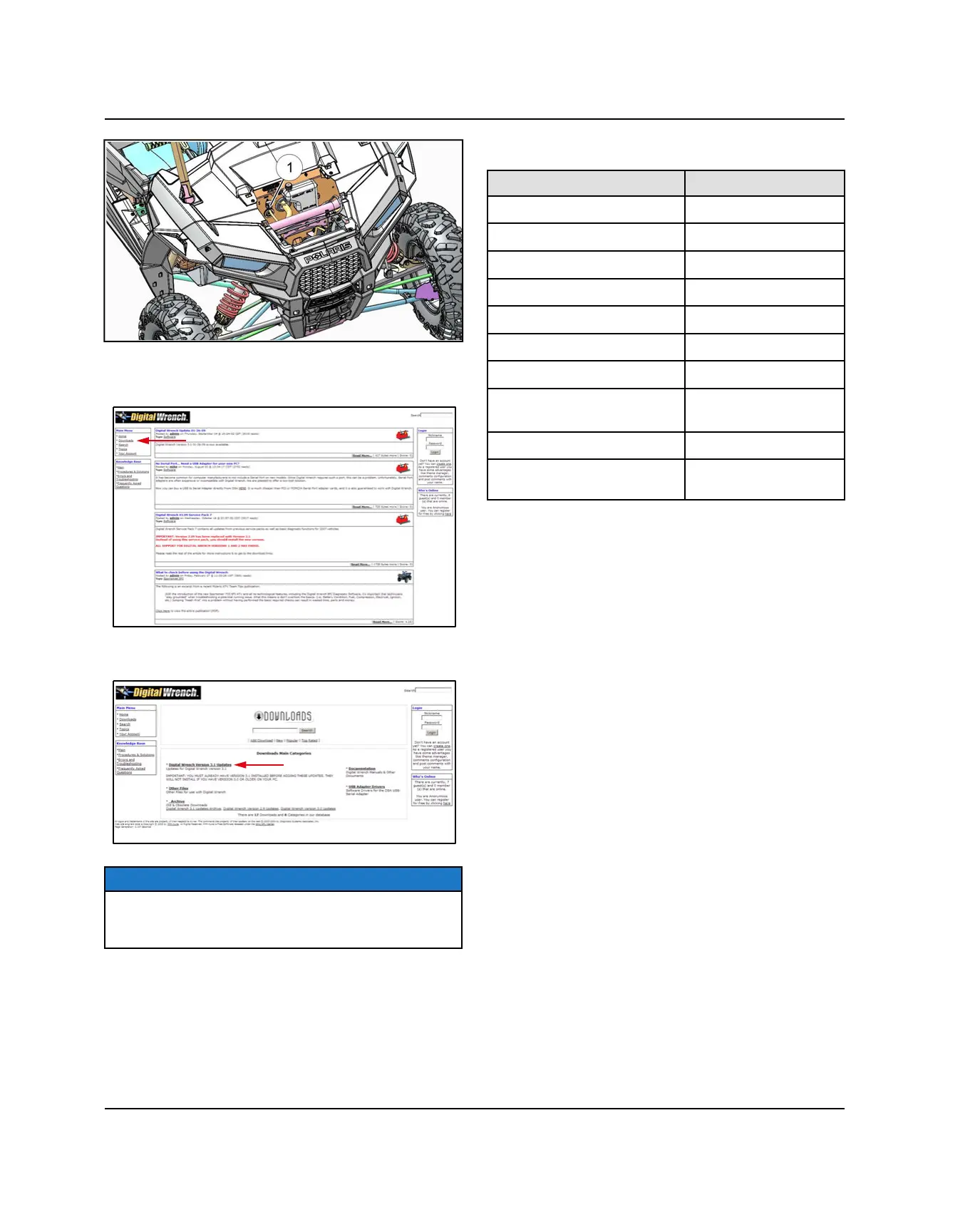

9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
Digital Wrench® - Download Website
Located at: www.polaris.diagsys.com
Download Digital Wrench® Updates:
NOTE
For the most recent information on Digital Wrench®
software and update downloads please visit the
website: www.polaris.diagsys.com
TORQUE SPECIFICATIONS
ITEM
TORQUE VALUE
CPS Retaining Bolt 9 ft-lb (12 Nm)
ECU Retaining Screws 24 in-lb (3 Nm)
ETC Housing Retaining Bolts 7 ft-lb (10 Nm)
Fuel Rail Mounting Screw 44 in-lb (5 Nm)
Fuel Tank PFA Nut
70 ft-lbs (95 Nm)
Fuel Tank Strap Screws 8 ft-lbs (11 Nm)
Intake Duct Clamps 35 in-lb (4 Nm)
Intake Manifold Mount Screw
(lower)
22 ft-lb (30 Nm)
Oxygen Sensor 13 ft-lb (18 Nm)
Throttle Pedal Mounting
Fasteners
18 ft-lb (24 Nm)
FUEL SYSTEM
