9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
10.7

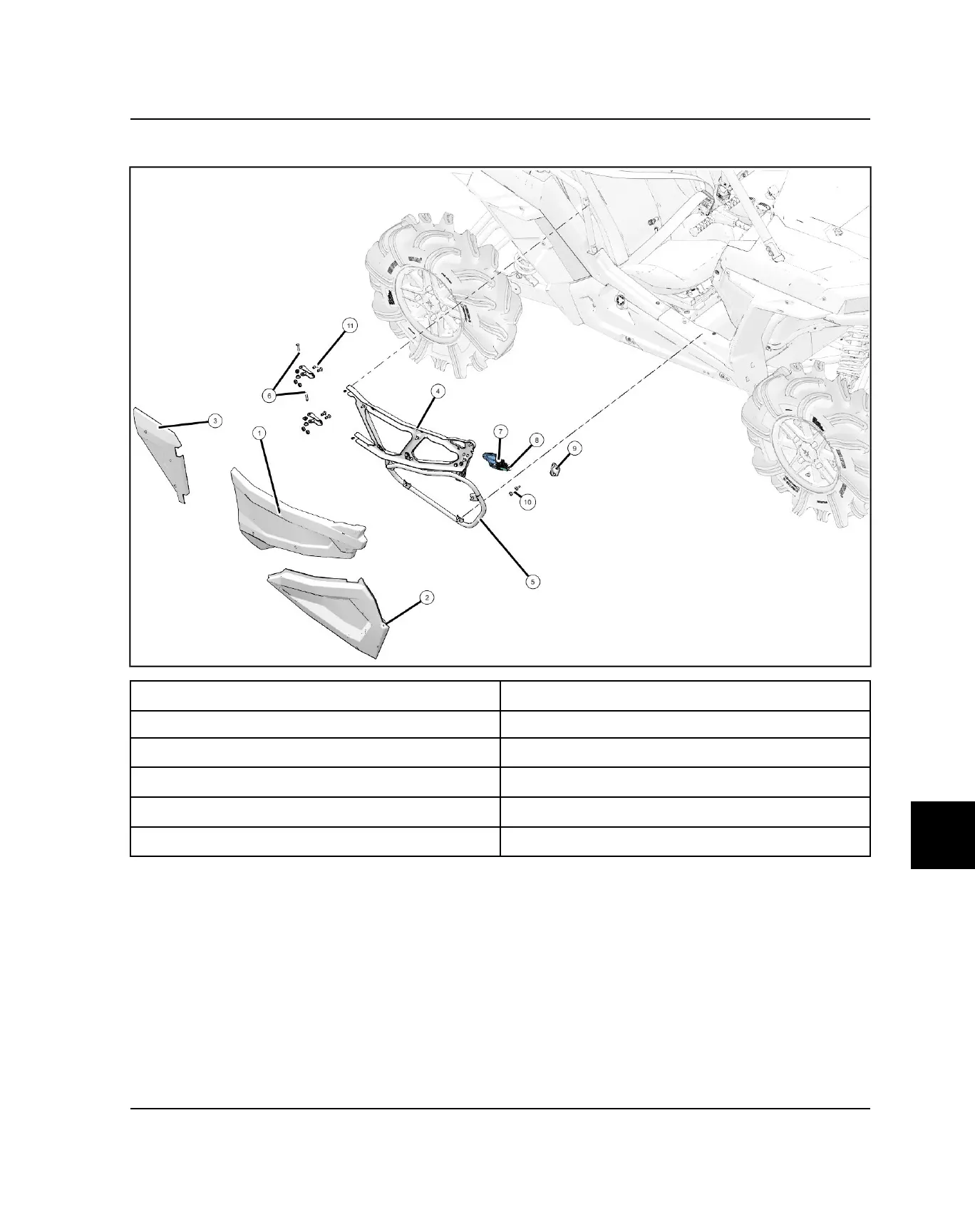

DOORS HIGH LIFTER
q
Upper Door Panel
u
Latch Release
w
Lower Door Panel
i
Latch
e
Hip Bolster Panel
o
Latch Striker
r
Upper Door Frame
a
Latch Striker Screws (8 ft-lbs, 11 Nm)
t
Lower Door Frame
s
Hinge Screws (8 ft-lbs, 11 Nm)
y
Hinge Pin
