WALKER EVANS SHOCK SERVICE
GENERAL SERVICE INFORMATION
Recommended Service Intervals
Walker Evans™ Racing Shocks will perform the best if
serviced at regular intervals:
• Every ride - Wash and dry the vehicle and suspension
• Every 100 hours - Visually inspect shock seals
• Every 1500 miles or Annually - Change shock oil and
replace seals
NOTE
If leakage from a remote shock reservoir hose fitting is
evident, check for a loose fitting and seal threads with
Three Bond 1215 (PN 2871557)

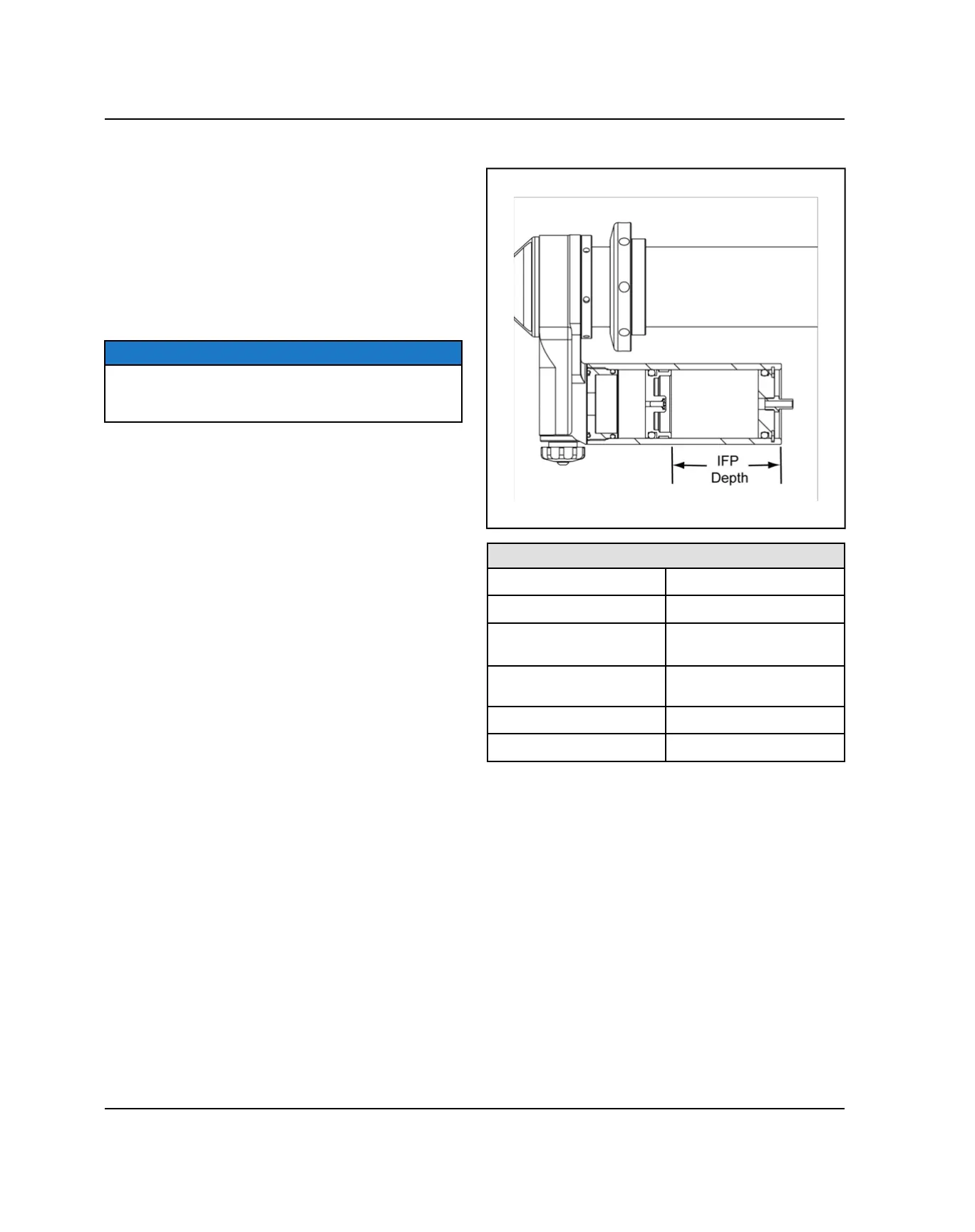

FRONT SHOCK SERVICE INFORMATION
FRONT SHOCK DESIGN DETAILS
Travel
8.42″ (21.39 cm)
Extended Length 25.10″ (63.75 cm)
IFP Location RZR XP 4
1000 / High Lifter
3.375″ (85.7 cm)
IFP Location RZR XP
1000 / Desert Edition
2.875″ (73.02 cm)
Nitrogen Pressure 125 psi (862 kPa) +/- 5%
Gas Shock Oil
2874124 (qt.)
