7.22
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

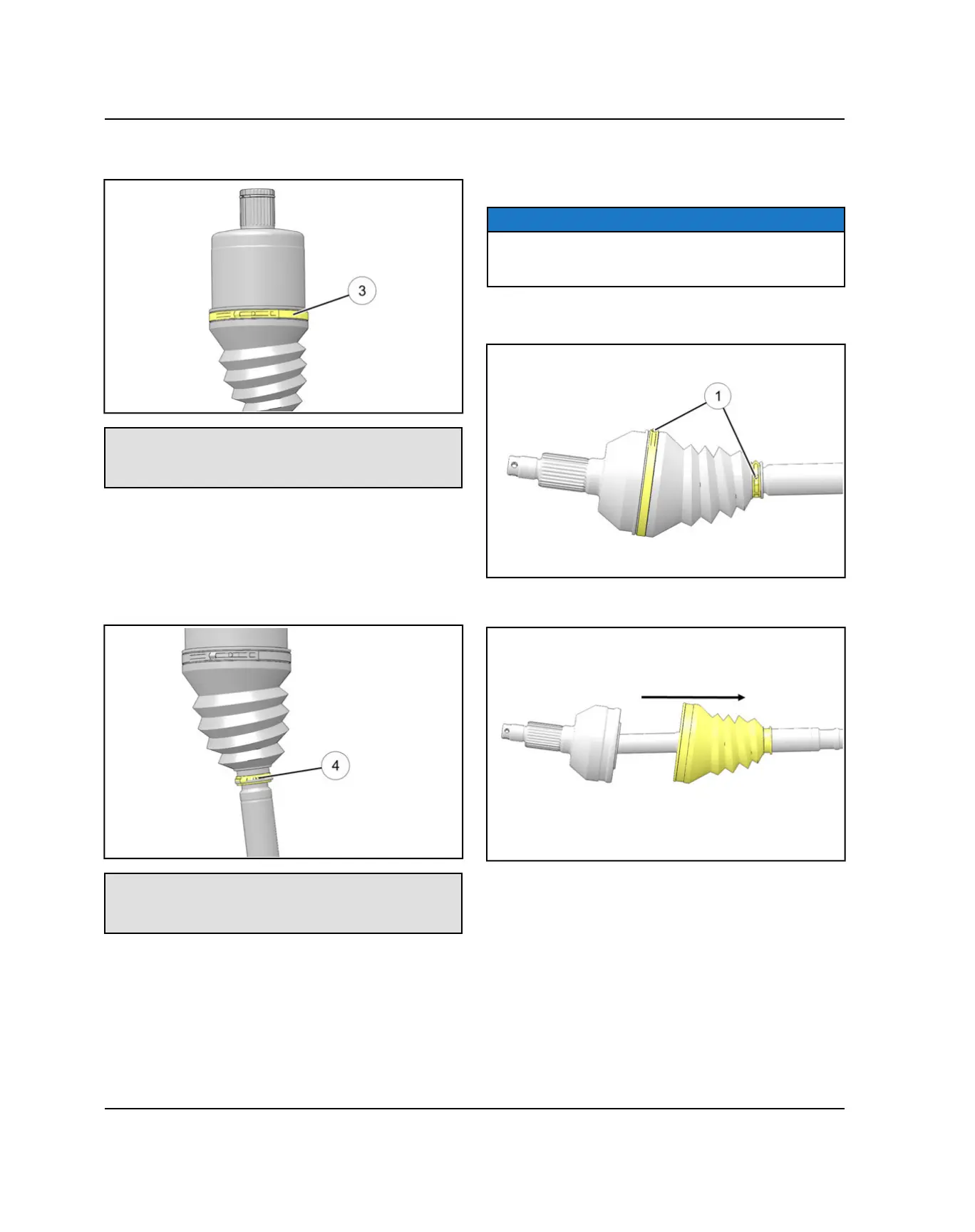

19. Install and tighten the small clamp
e
using the
appropriate clamp tool.
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
20. Pull out on the drive shaft to center the joint in the
housing. Slide a straight O-ring pick or a small
slotted screw driver between the large end of the
boot and the joint housing and lift up to equalize the
air pressure in the boot.
21. Position the boot lip in its groove. Install and tighten
the large clamp
r
using the appropriate clamp tool.
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
2016 CV JOINT SERVICE
OUTER CV BOOT REPLACEMENT
NOTE
Outer CV Joint replacement is not recommended. If the
outer joint is damaged, a new half shaft assembly
should be installed.
1. Use a side cutters to cut and discard the boot clamps
q
.
2. Remove the large end of the boot from the CV joint
and slide the boot down the shaft.
3. Clean the grease from the face of the joint.
FINAL DRIVE
