Polaris RZR XP4 1000 2016

3.14
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

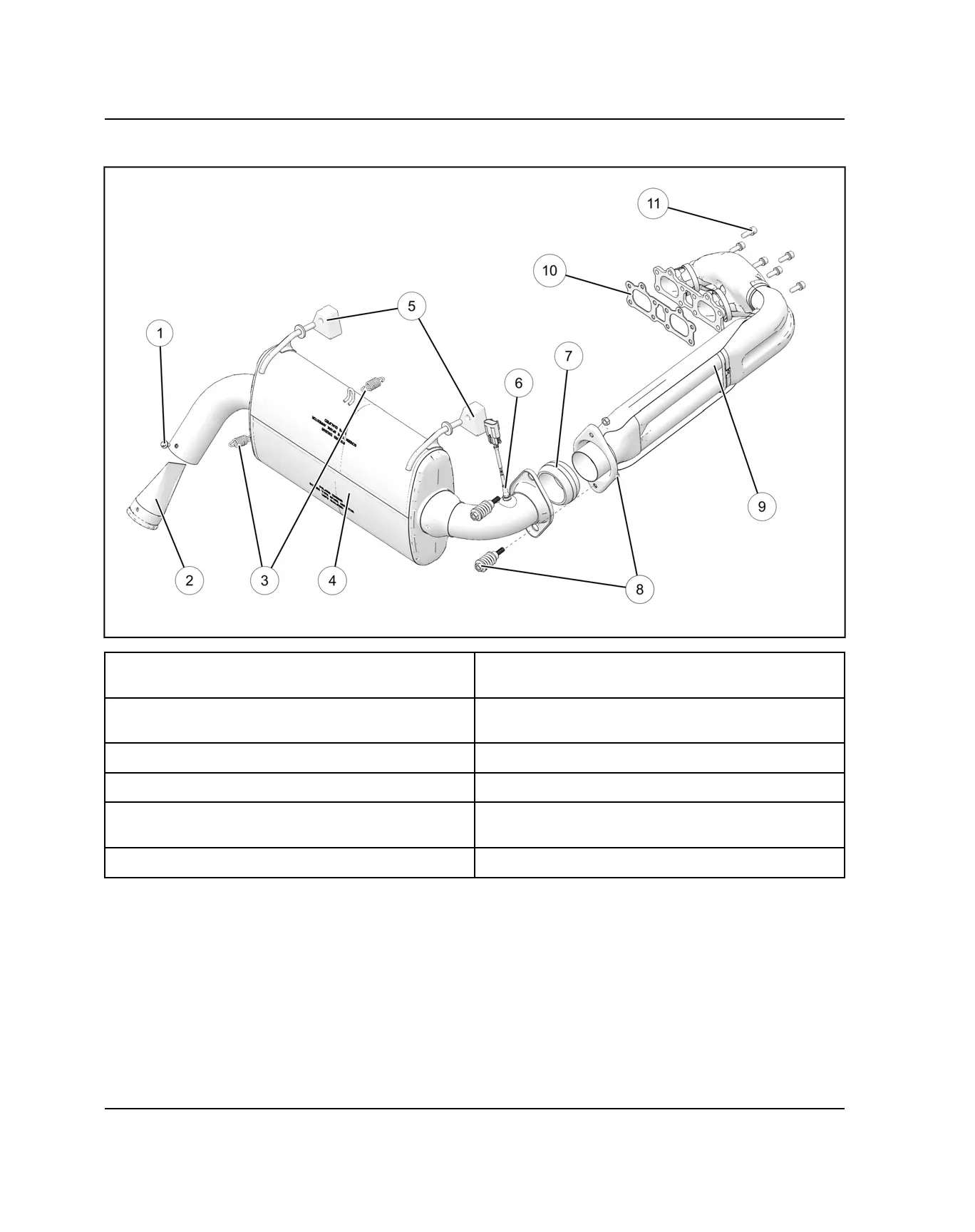

EXHAUST SYSTEM ASSEMBLY VIEW
q
Spark Arrestor Fastener
8 ft-lbs (11 Nm)
u
Exhaust Spherical Gasket
w
Spark Arrestor
i
Exhaust Stud w/Spring
21 ft-lb (28 Nm)
e
Exhaust Springs
o
Exhaust Pipe
r
Muffler / Silencer
a
Head Pipe Gasket
t
Muffler Isolator Mounts
s
Head Pipe Bolts
18 ft-lb (24 Nm)
y
Oxygen Sensor13 ft-lb (18 Nm)
ENGINE / COOLING SYSTEM
