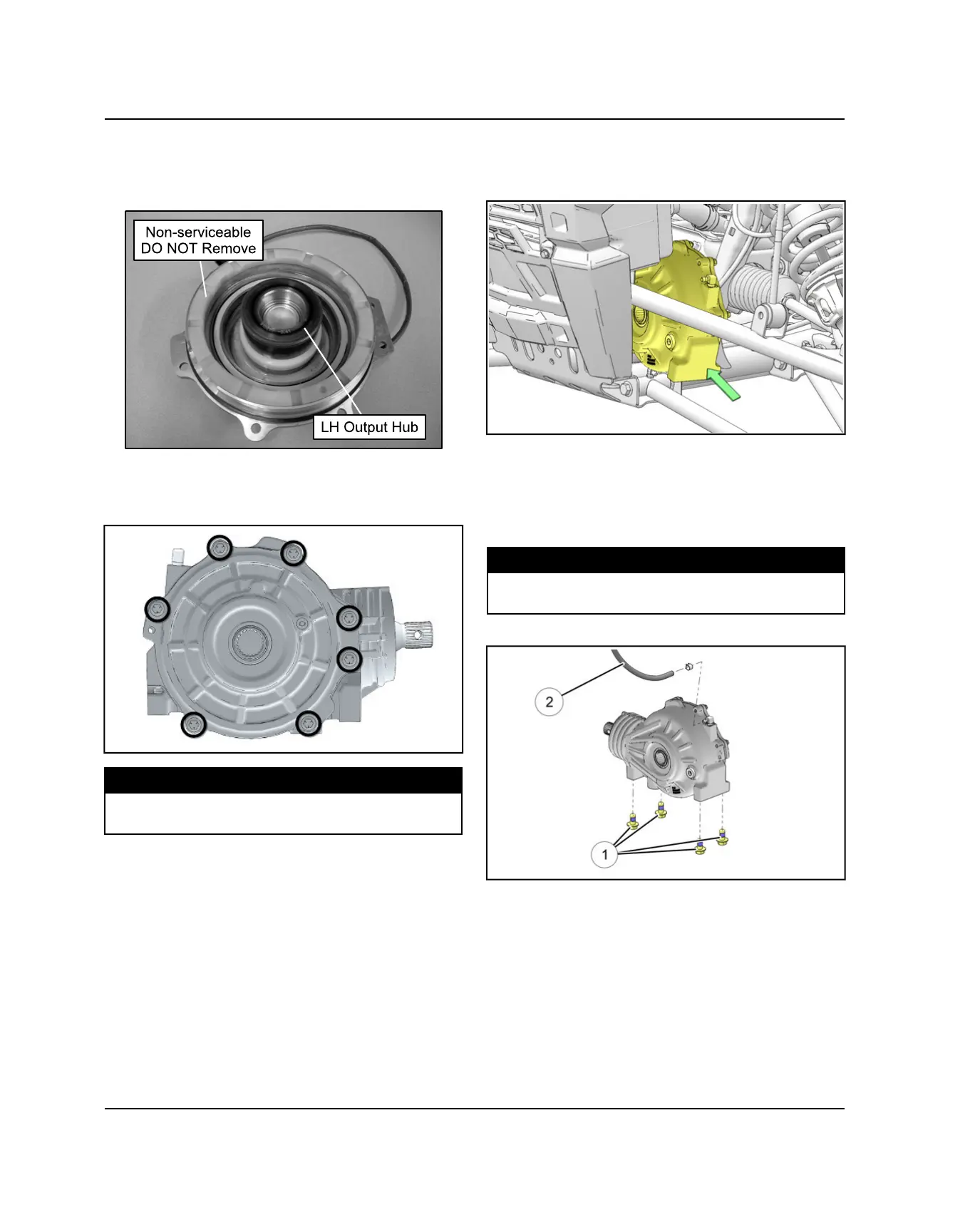

12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the seven cover plate screws and
torque to specification.
TORQUE
Cover Plate Screws:
11 ft-lbs (15 Nm)
FRONT GEARCASE INSTALLATION
1. Install the gearcase back into the vehicle through the
LH wheel well area, above the upper A-arm.
2. Lubricate the front gearcase splines with Anti-Seize.
3. Install the prop shaft onto the front gearcase input
shaft. Use a NEW spring pin in the front propshaft.
4. Install the four bolts
q
that secure the front gearcase
to the frame and torque to specification.
TORQUE
Front Gearcase Mounting Bolts:
30 ft-lbs (41 Nm)
5. Install the vent line
w
.
FINAL DRIVE
