7
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.43

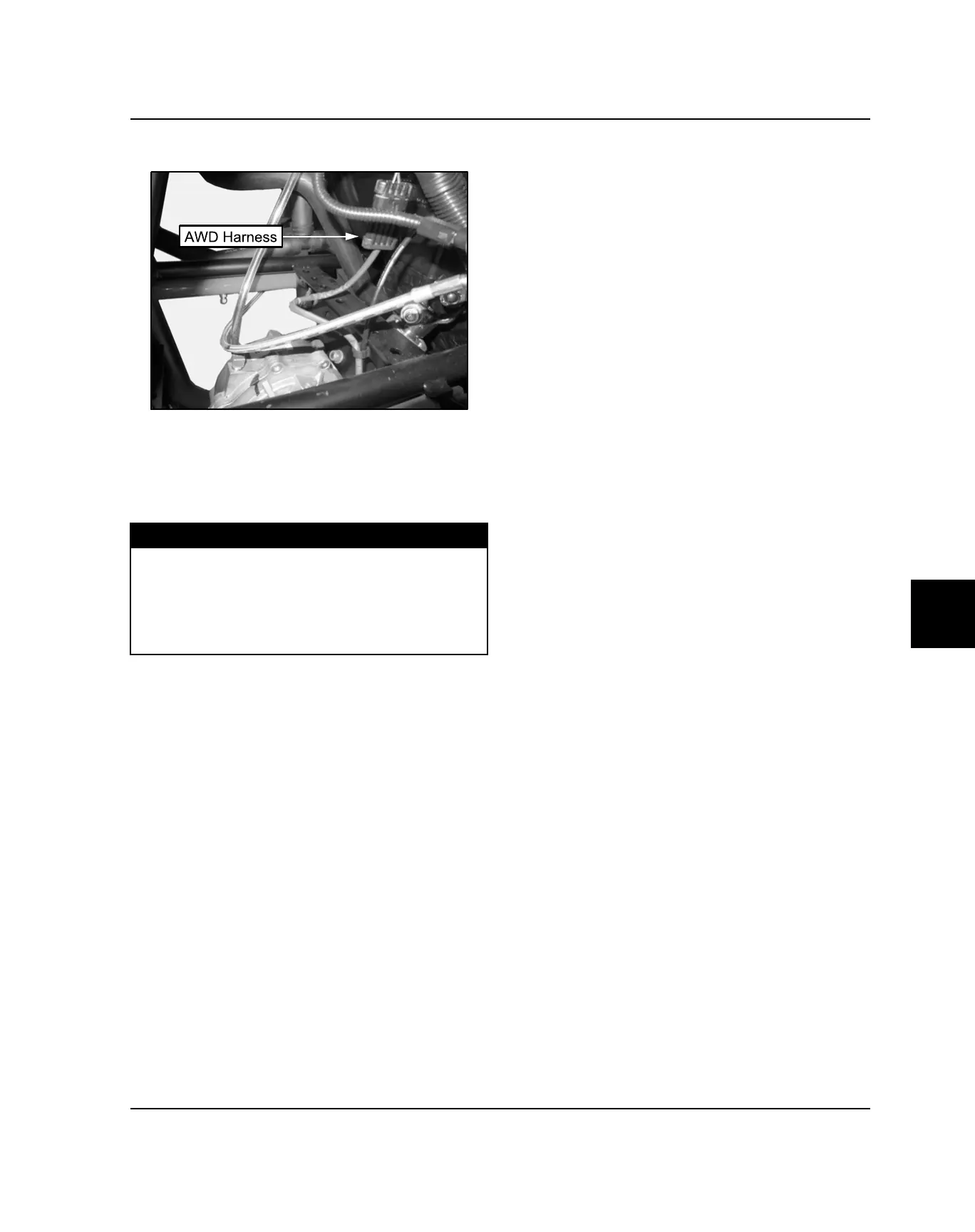

6. Connect the AWD wire harness.
7. Refer to FRONT DRIVE SHAFT - Drive Shaft
Installation, page 7.13 and install both front drive
shafts into the gearcase.
8. Add the proper lubricant to the front gearcase. Refer
to Chapter 2 for fluid fill and change information.
FLUID CAPACITY
Recommended Front Gearcase Fluid:
Demand Drive Fluid 2877922 (quart)
Capacity:8.5 oz (250 mL)
(fill on a level surface to bottom of threads on the fill
hole)
FINAL DRIVE
