TRANSMISSION SERVICE

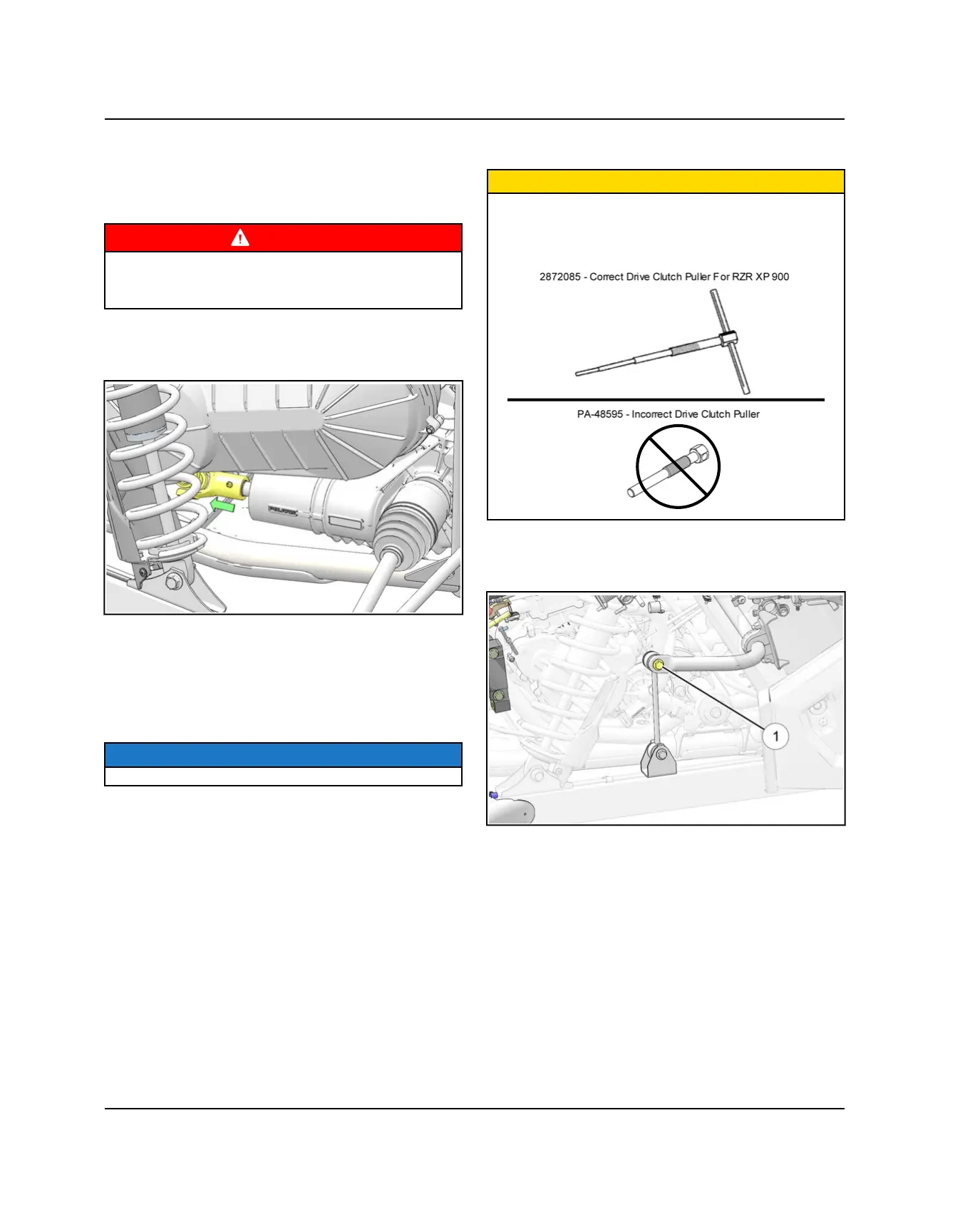

TRANSMISSION REMOVAL
1. Safely lift and support the vehicle.
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
2. Remove the prop shaft from the transmission output
shaft (see Chapter 7 – Rear Prop Shaft Removal,
page 7.28).
3. Remove both rear lower shock bolts and swing
shocks outward.
4. Remove left sway bar end link lower fasteners from
the trailing arm.
5. Remove the PVT system from the vehicle (see
Chapter 5 – PVT Disassembly (2016), page 5.14
NOTE
CAUTION
Be sure to use the correct Drive Clutch Puller to prevent
damage to crankshaft.
Drive Clutch Puller – 2872085
6. Remove the stabilizer bar mounting bolt and nut
q
from both sides. Discard nuts and replace with new
upon assembly.
TRANSMISSION
