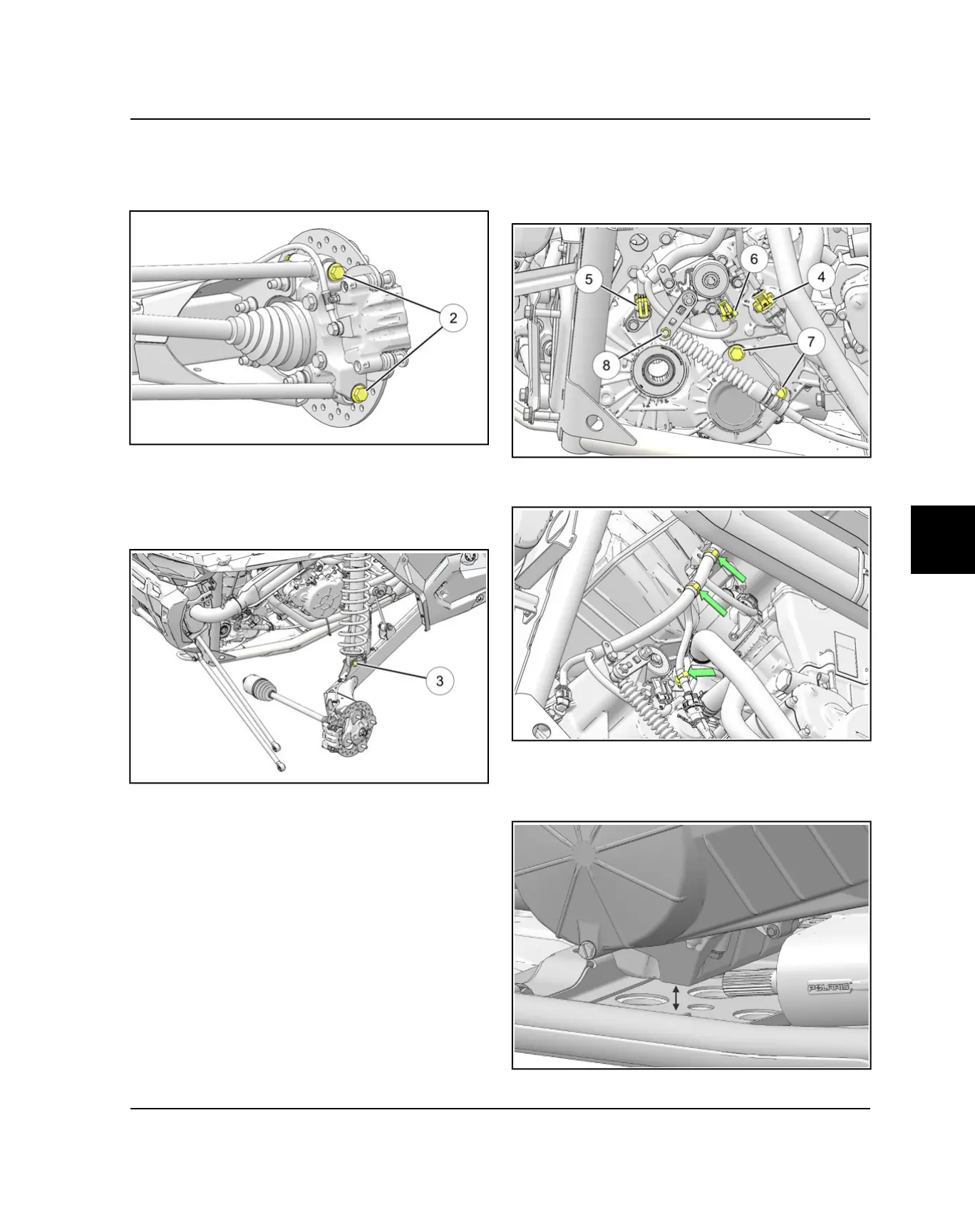

7. Remove the four bolts (
w
attaching the upper and
lower radius rods to the bearing carriers (left and right
side). Discard nuts and replace with new upon
assembly. Allow the radius rods swing downward.
8. Lift training arms up and swing trailing arms outward
to remove the drive shafts from the transmission.
9. Maneuver the drive shafts out of the vehicle frame.
Reinstall the lower shock bolts
e
to hold the trailing
arms up during the rest of the removal procedure.
10.Remove vent hose from transmission.
11. Remove the gear position switch connector
y
, speed
sensor connector
t
, crankshaft position sensor
connector
r
, shift bracket bolts and shift bracket
u
,
shift cable clevis pin and washer
i
from the
transmission.
12.Remove the wire ties retaining harness to
transmission and mounts.
13.Place a spacer or support between the vehicle frame
and engine to hold the engine up in position or
support the engine from the top side using an
overhead lift.
