Polaris RZR XP4 1000 2016

10
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
10.17

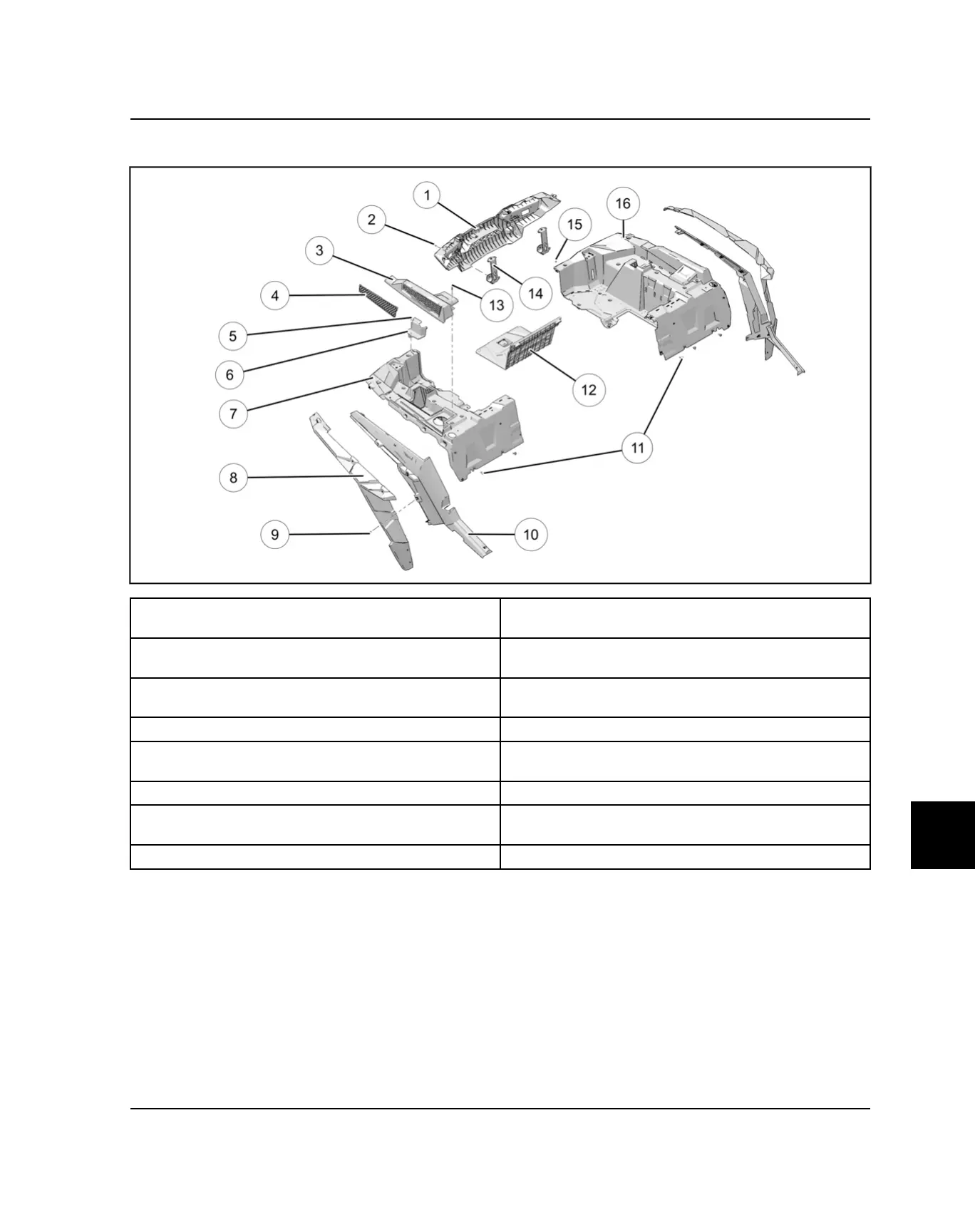

REAR CARGO BOX / FENDERS
q
Rear Fascia
o
Body Screws
8 ft-lb (11 Nm)
w
Rear Fascia Screws
8 ft-lb (11 Nm)
a
Rear Fender
e
Intake Cover
s
Cargo Box Screws
8 ft-lb (11 Nm)
r
Intake Pre-filter
d
Cargo Box Panel
t
Shock Panel Screw
14 in-lbs (2 Nm)
f
Intake Cover Retainer
y
Shock Panel
g
Rear Fascia Support Brackets
u
Passenger Side Cargo Box Half
h
Bracket Fasteners
8 ft-lb (11 Nm)
i
Fender Flair
j
Driver Side Cargo Box Half
BODY / FRAME
