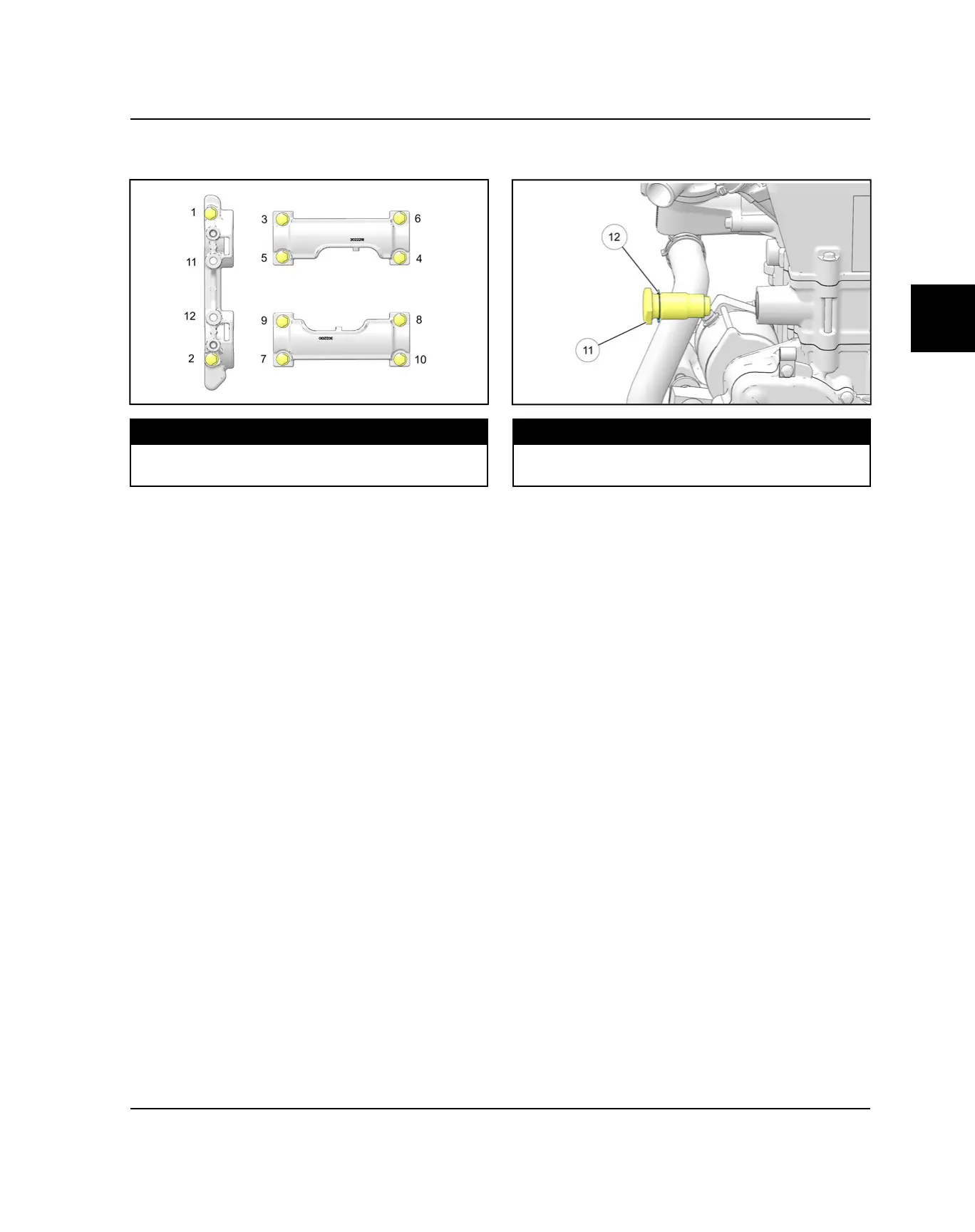

20. Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
21. Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new
tensioner sealing washer
d
.
22. Install the hydraulic cam chain tensioner
s
into the
cylinder and torque to specification.
TORQUE
Cam Chain Tensioner:
29 ft-lb (40 Nm)
23. Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
