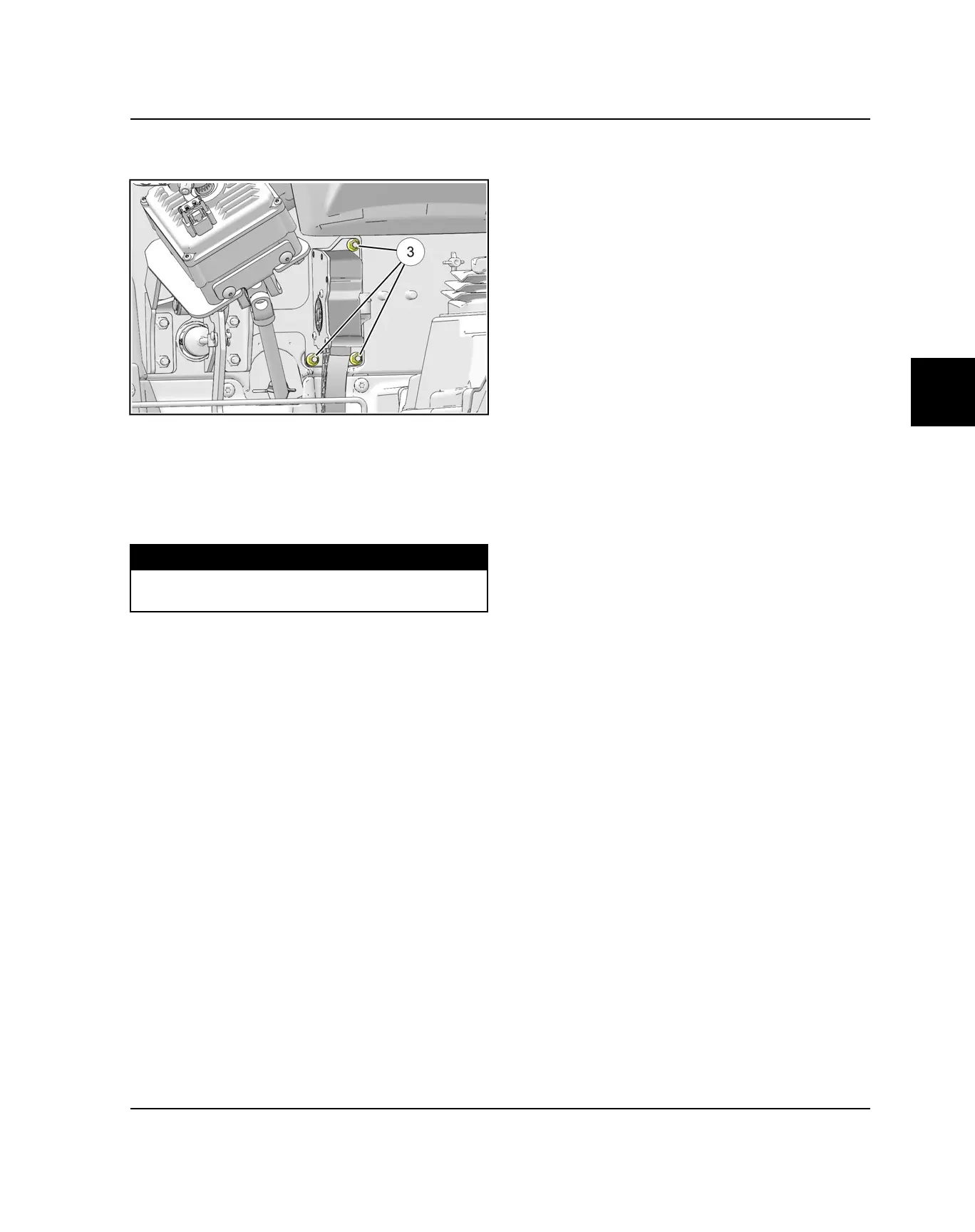

3. Remove the three bolts
e
securing the throttle pedal
assembly to the frame support.
4. Remove the pedal assembly from the vehicle.
ETC Installation
5. Place the throttle pedal assembly on the mounting
studs and loosely install the three fasteners.
6. Torque the three mounting bolts to specification and
connect the PPS harness connection.
TORQUE
Throttle Pedal Mounting fasteners:
18 ft-lb (24 Nm)
7. Manually cycle the throttle pedal to verify the throttle
pedal moves freely.
8. Connect the negative (-) battery cable and install the
drivers seat.
