Polaris RZR XP4 1000 2016 User Manual

7.16
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

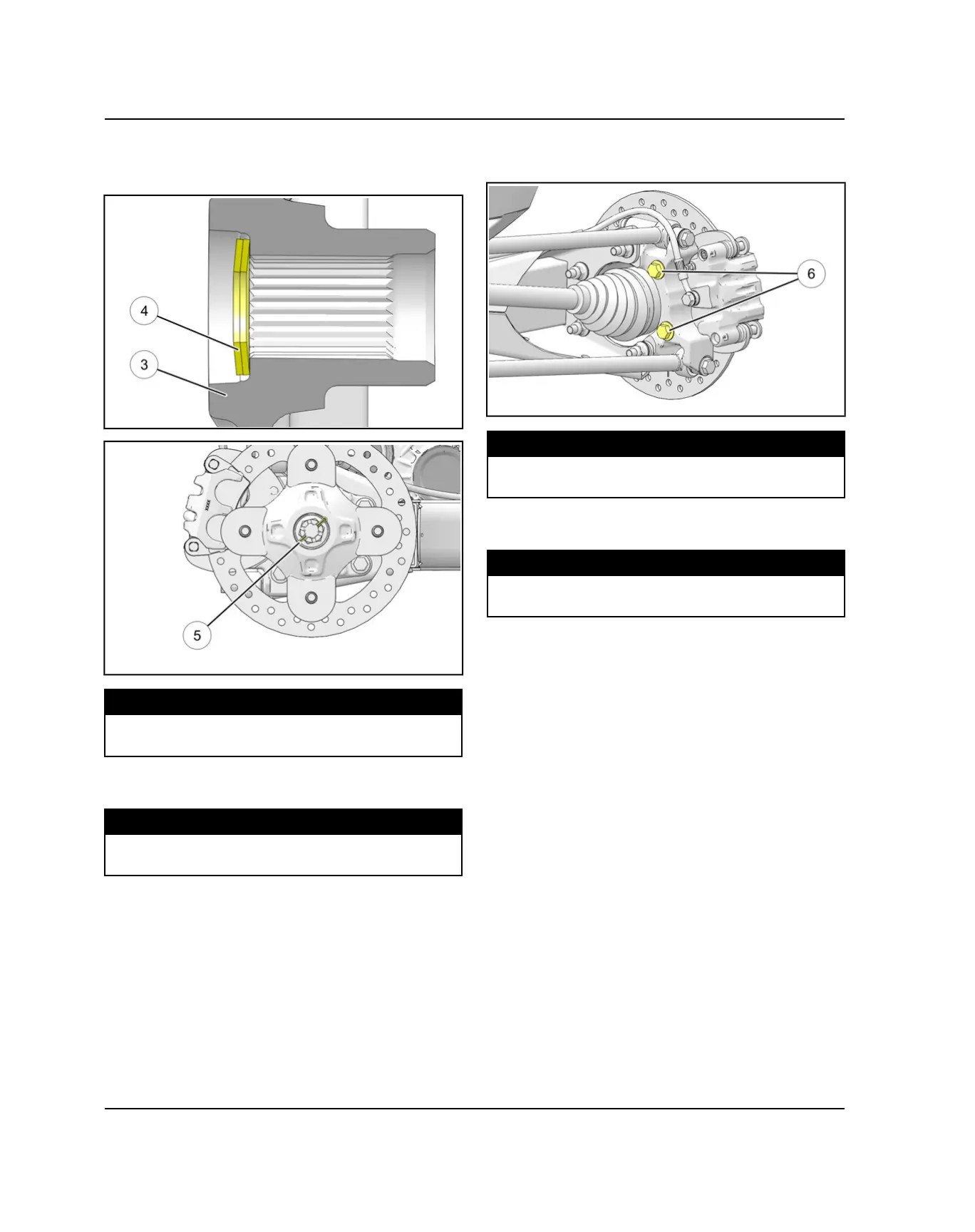

7. Install rear wheel hub assembly
e
. Install the two
cone washers
r
and castle nut. Torque castle nut to
specification. Install new cotter pin
t
.
TORQUE
Rear Hub Castle Nut:
110 ft-lbs (149 Nm)
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
TORQUE
Radius Rods to Bearing Carrier:
40 ft-lb (54 Nm)
9. Install the rear brake caliper assembly and new bolts
y
. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
10. Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
FINAL DRIVE
