8
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
8.47

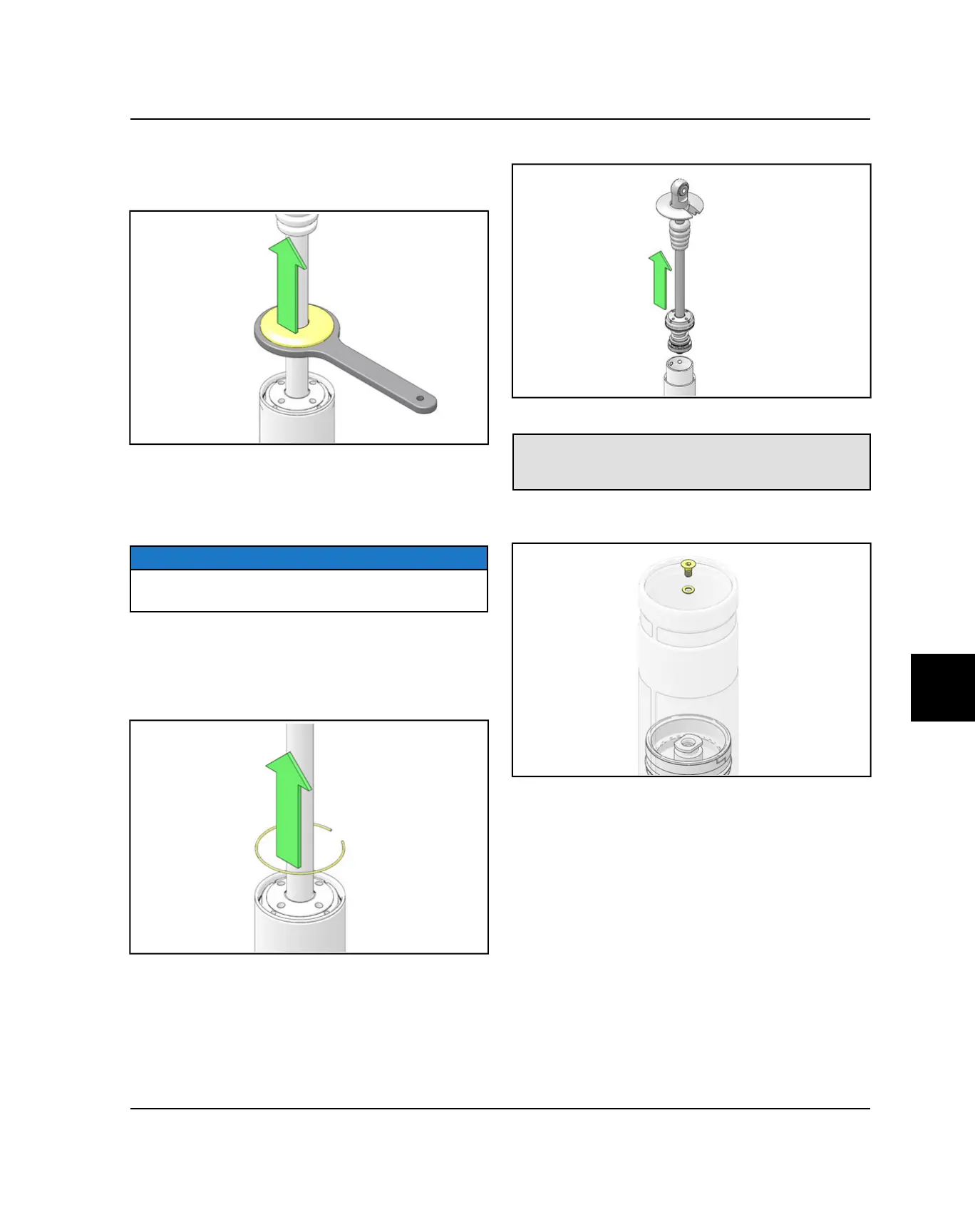

5. Slide body cap removal tool over body and place the
retaining ring from the reservoir end cap around the
body cap. Slide the tool up to the retaining ring and
tap with hammer to remove.
6. Once the cap is removed it will expose the bearing
assembly. On 2.5 diameter shocks, you will need to
apply a sufficient amount of heat to the bearing
assembly to break the Loctite bond between the cinch
ring and the bearing assembly.
NOTE
The seal will be destroyed from the heat and must be
replaced.
7. Hold cinch ring with spanner and rotate bearing
assembly counter-clockwise to release pressure on
retaining ring.
8. Press down on bearing assembly and remove
retaining ring.
9. Remove the shaft assembly and body assembly.
10.Use the IFP tool to hold the IFP.
IFP Tool:
commercially available
also available from FOX 398-00-394
11. Remove bleed screw and o-ring with extra long 1/8"
hex wrench.
12.Remove IFP.
13.Dump out used shock oil.
STEERING / SUSPENSION
