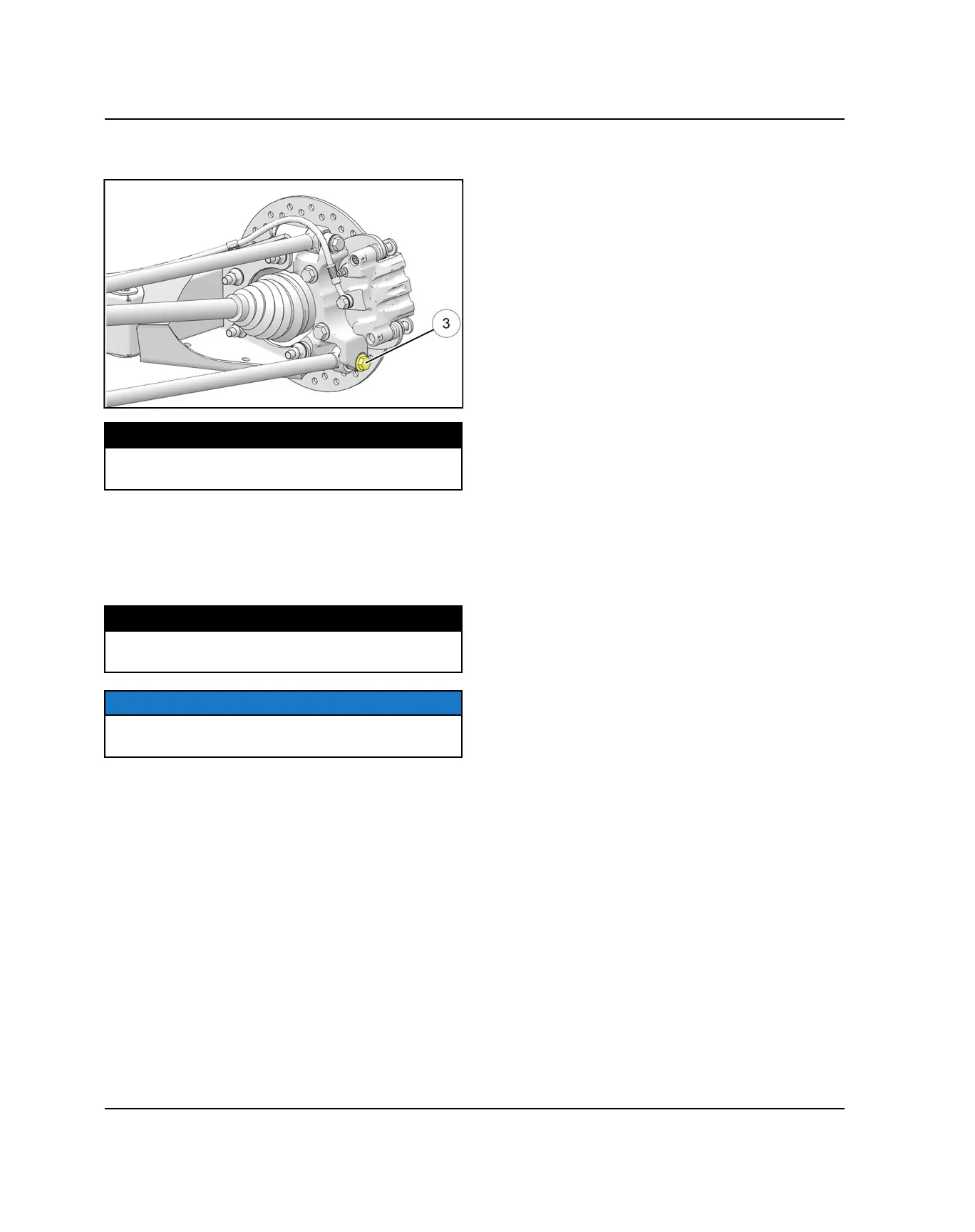

3. Install lower radius rod bolt, washer and new nut.
Torque to specification.
TORQUE
Radius Rod to Bearing Carrier Bolt:
40 ft-lb (54 Nm)
4. Install the pad adjustment screw and turn until
stationary pad contacts disc, then back off 1/2 turn.
5. Follow bleeding procedure outlined earlier in this
chapter.
6. Install wheel and torque wheel nuts to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
NOTE
If new pads are installed, refer to Brake Burnishing
Procedure, page 9.29.
