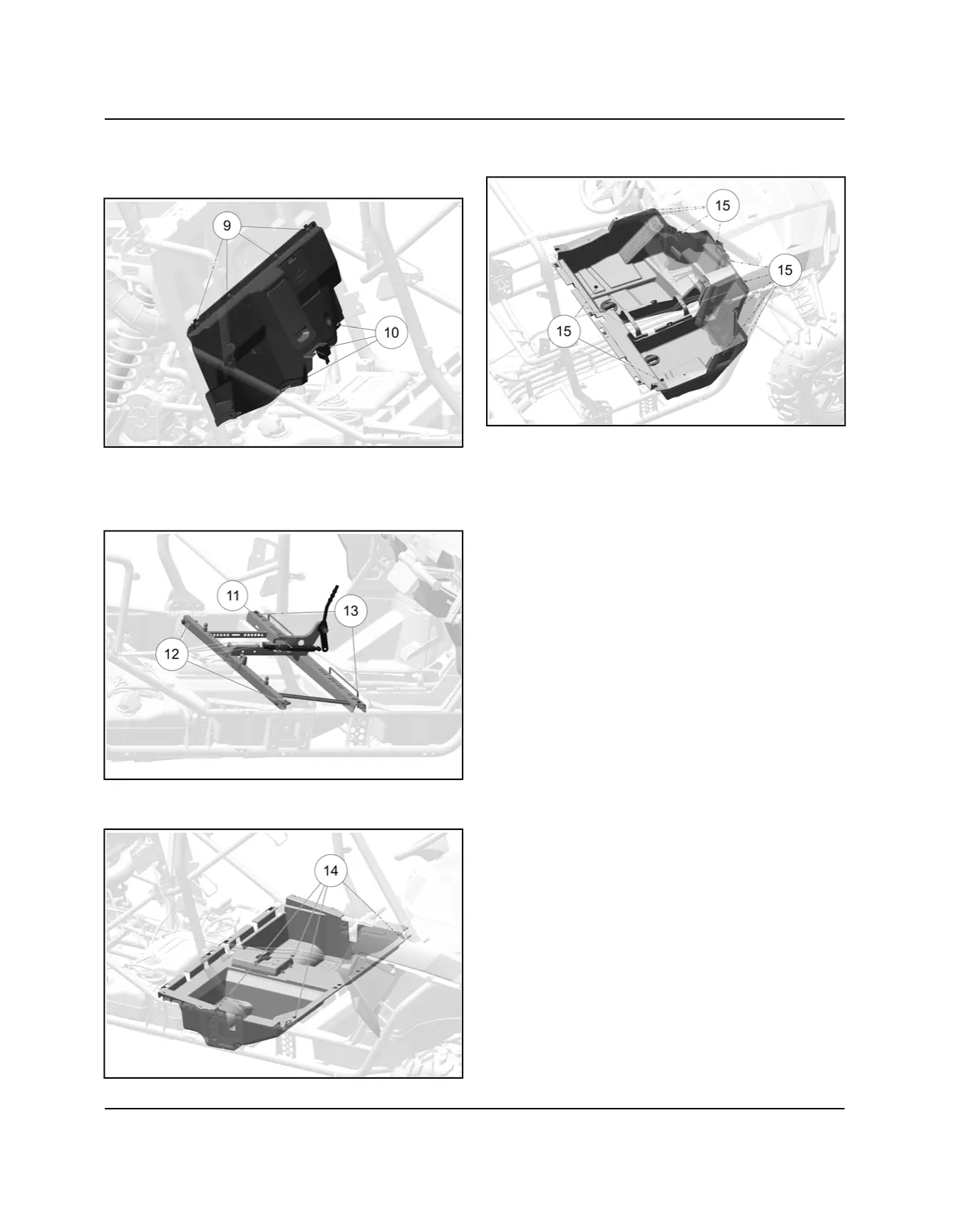

12.Remove four Torx T40 screws
o
and four push rivets
a
retaining the upper rear close off panel. Remove
the upper close off panel.
13.Disconnect the shift cable
s
from the front seat base.
Remove two M8x1.25x20 bolts
d
and two
M10x1.25x55 bolts
f
from the front seat base.
Remove front seat base assembly.
14.Remove four Torx T40 screws
g
retaining the rear
floor and remove the rear floor.
15.Remove the Torx screws
h
retaining the main floor
and remove the main floor from the vehicle.
BODY / FRAME
