5.13
Engine Systems
5
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
ENGINE MOUNTS

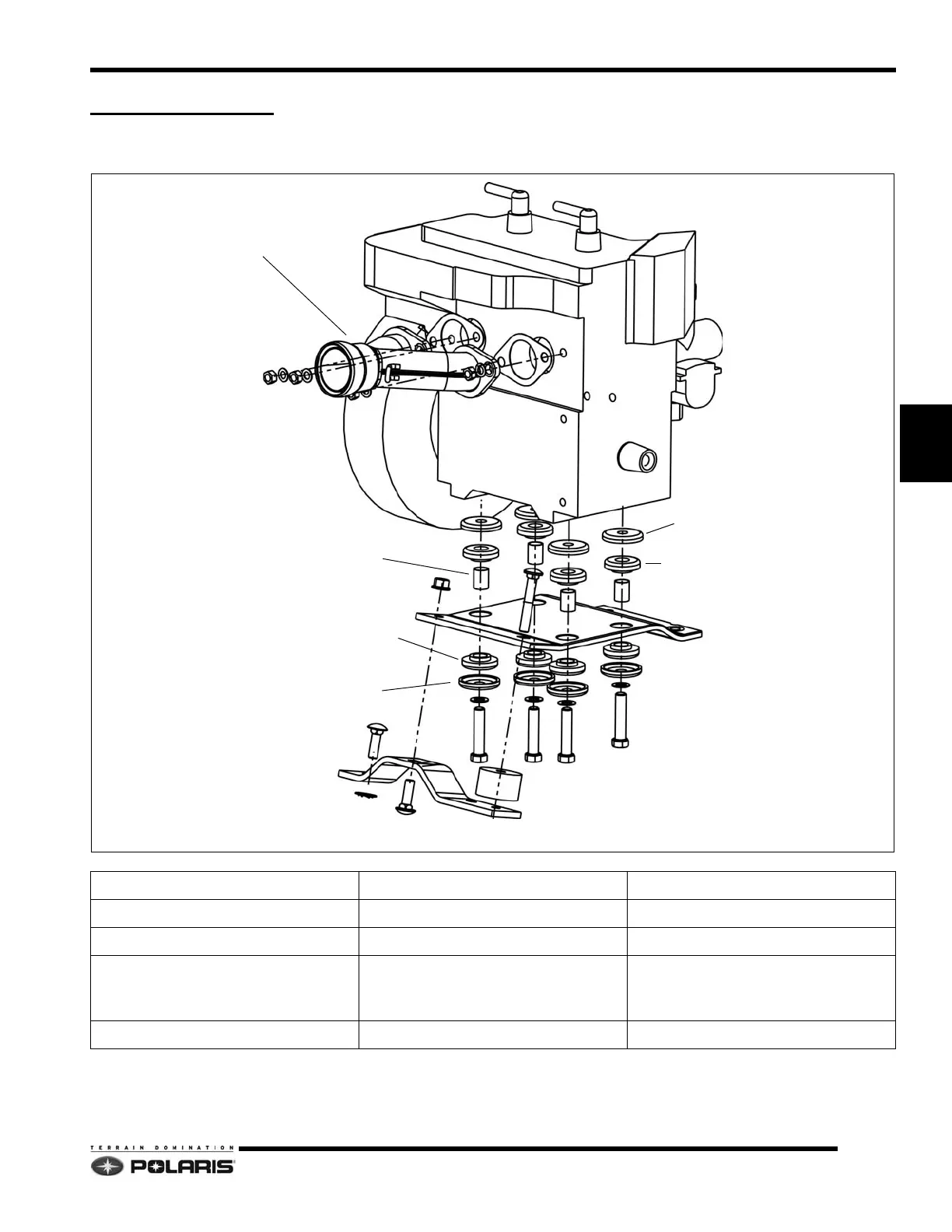

340 Engine Mounting
Fastener Torque Note
Engine Plate Mounting Nuts 28 ft.lbs. (38 Nm)
Engine Plate Left-Front Mounting Bolt 28 ft.lbs. (38 Nm)
Engine Plate-to-Engine Bolts 45 ft.lbs. (61 Nm)
Vibration dampeners must be installed
perpendicular to plate and centered in
bushings and caps.
Exhaust Manifold Nuts 15 ft.lbs. (20 Nm)
EXHAUST MANIFOLD
ENGINE PLATE
ENGINE STRAP
SPACER
VIBRATION DAMPENERS
DAMPENER CAPS
BUSHINGS
VIBRATION DAMPENERS
DAMPENER CAPS
To Next Page
