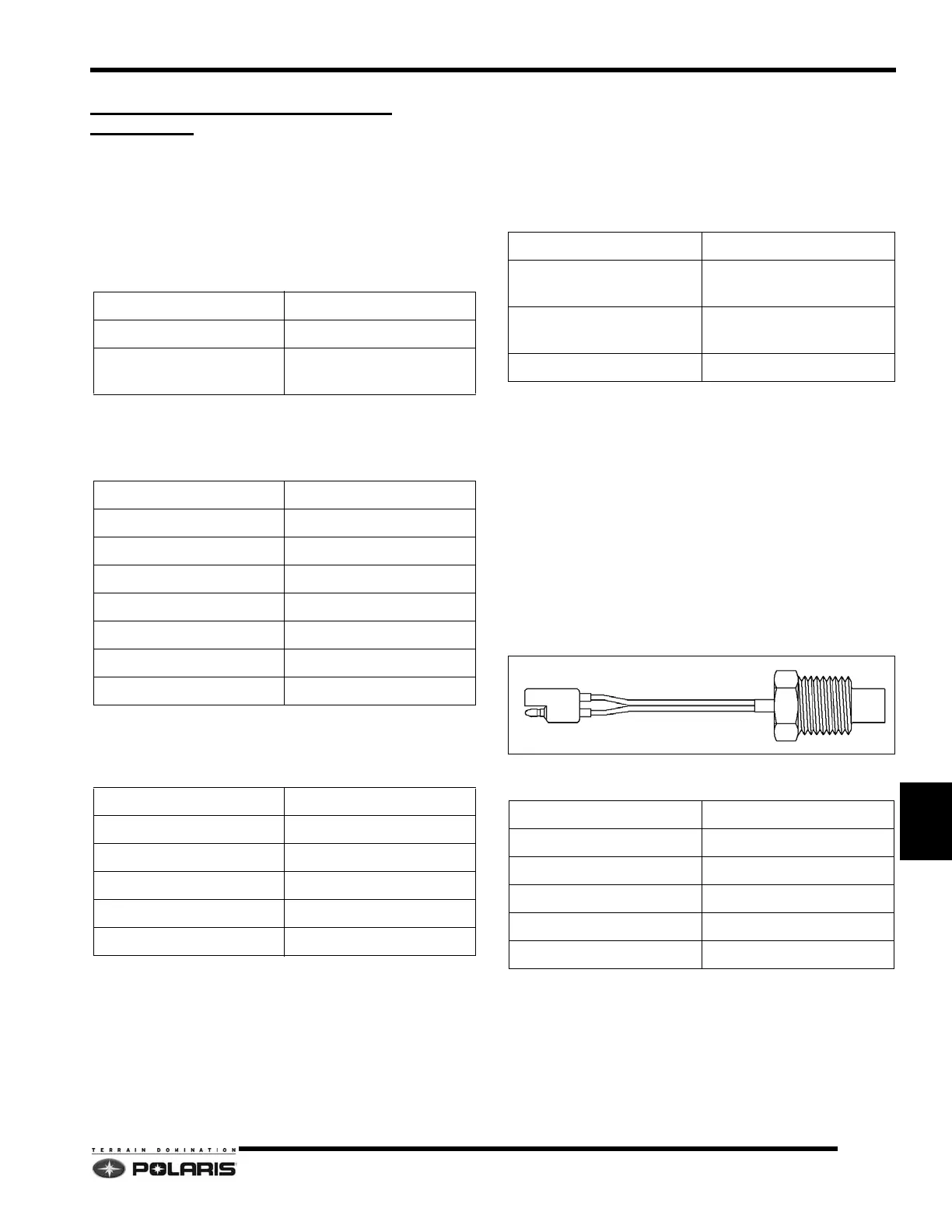

10.15
Battery and Electrical Systems
10
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
CARBURETED ELECTRICAL
SYSTEMS
EC50PL Stator Specifications
NOTE: Use a multimeter to test the stator circuits.
Remember to test the circuits when the engine is cold
and after the engine has been running for some time.
EC34 / EC55 Stator Specifications
500EV Stator Specifications
Ignition Coil Packs
NOTE: Specifications listed for all models except
EC50PL (488cc) as this model features a CDI / coil
pack.
Oil Level Sender
To test the oil level sender, position the sender as it would
be in the oil tank. Allow the float to drop in the direction it
would if the oil tank were empty. Continuity should be
present when using a multimeter to test the sender with
the float in the “empty” position.
No continuity should be present when the float is moved
away from the “empty” position.
500 EV Coolant Temperature Sensor
Specifications
BRN / WHT TO BLK / RED 164
YELLOW TO YEL / RED 0.2 - 0.5
YEL / RED, WHT, BRN TO
GROUND
0
Specifications
YEL TO BRN 0.16
BRN TO ENGINE 0
BLK / RED TO GRN 13
RED TO GRN 13
RED TO ENGINE OPEN
BLK TO ENGINE 0
WHT / RED TO WHT 185
WHT TO ENGINE OPEN
Specifications
YEL TO BRN 0.15
BRN TO ENGINE 0
BLK / RED TO GRN 15
RED TO GRN 15
BLK or WHT TO ENGINE 0
WHT / RED TO WHT 185
Specifications
BLK TO WHT (Primary) 0.3
BLK or WHT TO
SECONDARY LEAD
OPEN
SECONDARY LEAD TO
LEAD
5K
PLUG CAPS 10K
Sensor Specifications
Temperature (F / C) Resistance (OHMS)
-22_F / -30_C 22914 - 28006
32_F / 0_C 5085 - 6215
68_F / 20_C 2189 - 2675
149_F / 6_C 455 - 556.2
221_F / 105_C 152.8 - 186.8
