Polaris Widetrak LX 2008 - Starter Motor Assembly (Typical)

10.11
Battery and Electrical Systems
10
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

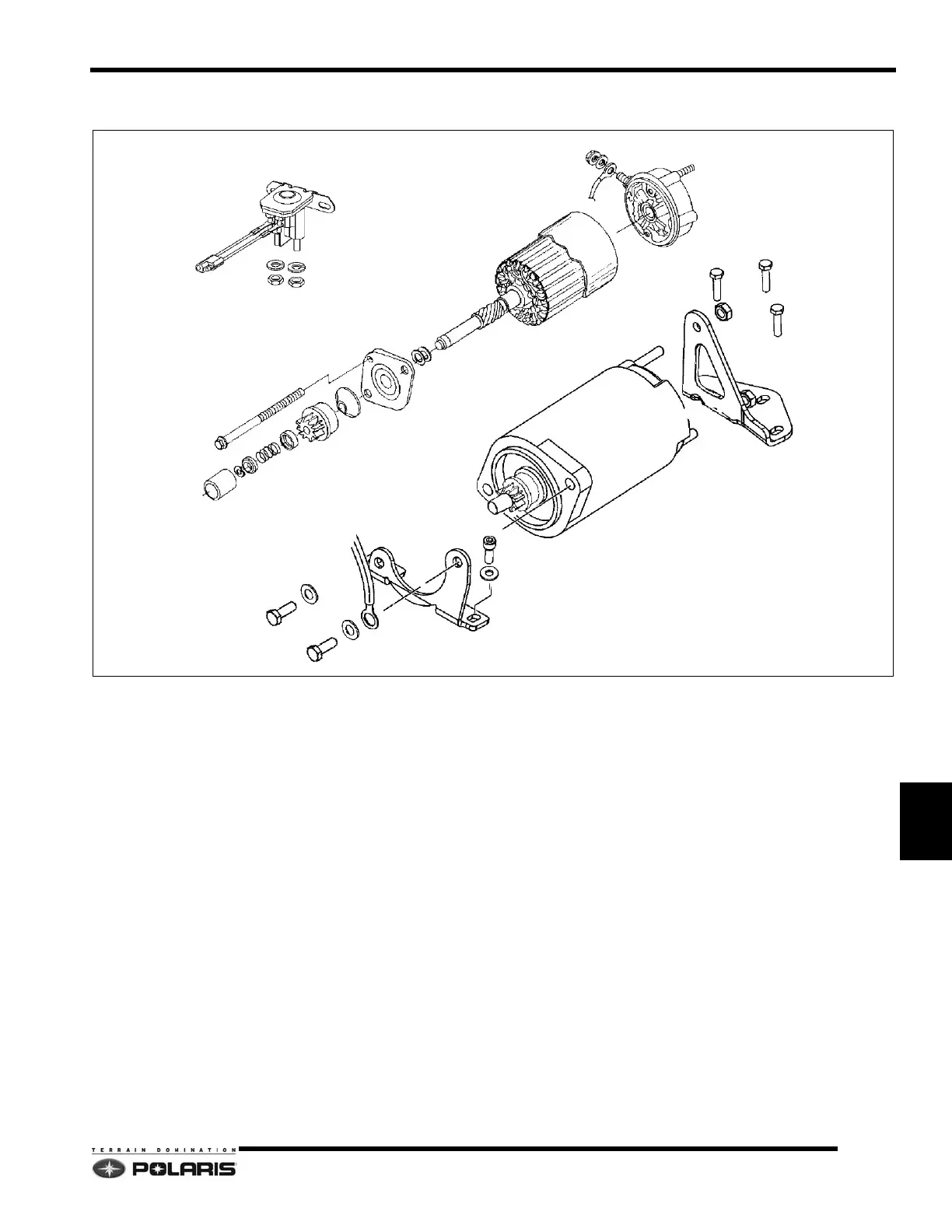

Starter Motor Assembly (Typical)
NOTE: The starter motor bracket fasteners on 550
engines are treated with Loctite 262. Apply heat to
each fastener to soften the threadlock prior to
removing fastener. Apply Loctite 262 to threads
during assembly.
STARTER SOLENOID
STARTER MOTOR
MOTOR BRACKET
MOTOR BRACKET
GROUND CABLE
14 - 16 Ft.Lbs. (19 - 21 Nm)
19 - 26 Ft.Lbs. (25 - 35 Nm)
9 Ft.Lbs. (12 Nm)
COMMUTATOR CAP
ARMATURE
DRIVE CAP
SCREW
RETURN SPRING ASM
PINION
